Lexmark C792 series - Base Printer Cover Removals; Front Access Door Assembly Removal

To Next Page

To Previous Page

Repair information 4-3

5062

Go Back

Base printer cover removals

Front access door assembly removal

See “Top, right, and front covers” on page 7-3 for the part number.

1. Remove the operator panel assembly. See “Operator panel (OP) assembly removal” on page 4-110.

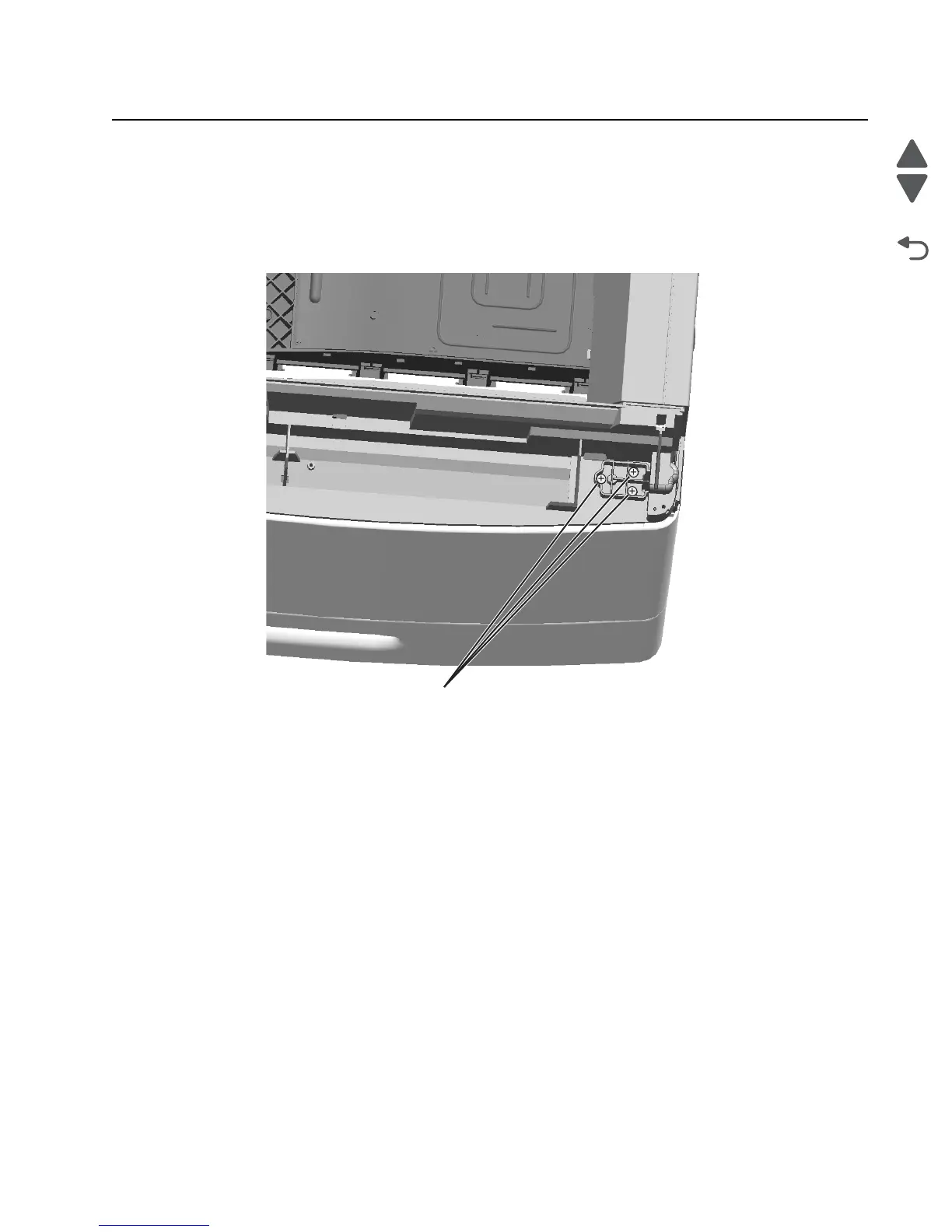

2. Remove the three screws (A) from the front access door pivot.

A (88A0323)
