Lexmark C792 series

To Next Page

To Previous Page

4-4 Service Manual

5062

Go Back

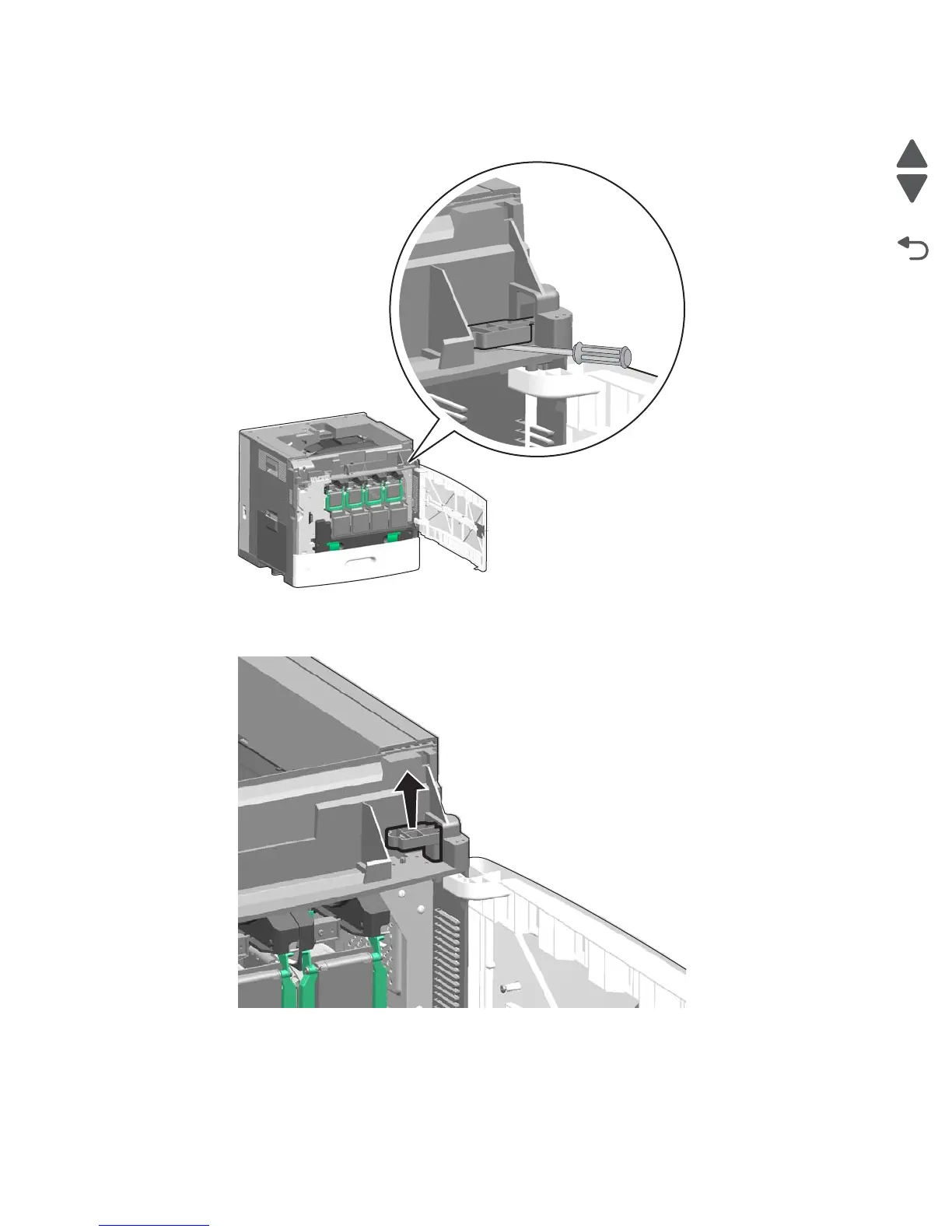

3. Use a flat-blade screwdriver to carefully pry up the front access door pivot, and lift the pivot enough to

remove the door.
