Repair information 4-337
5062

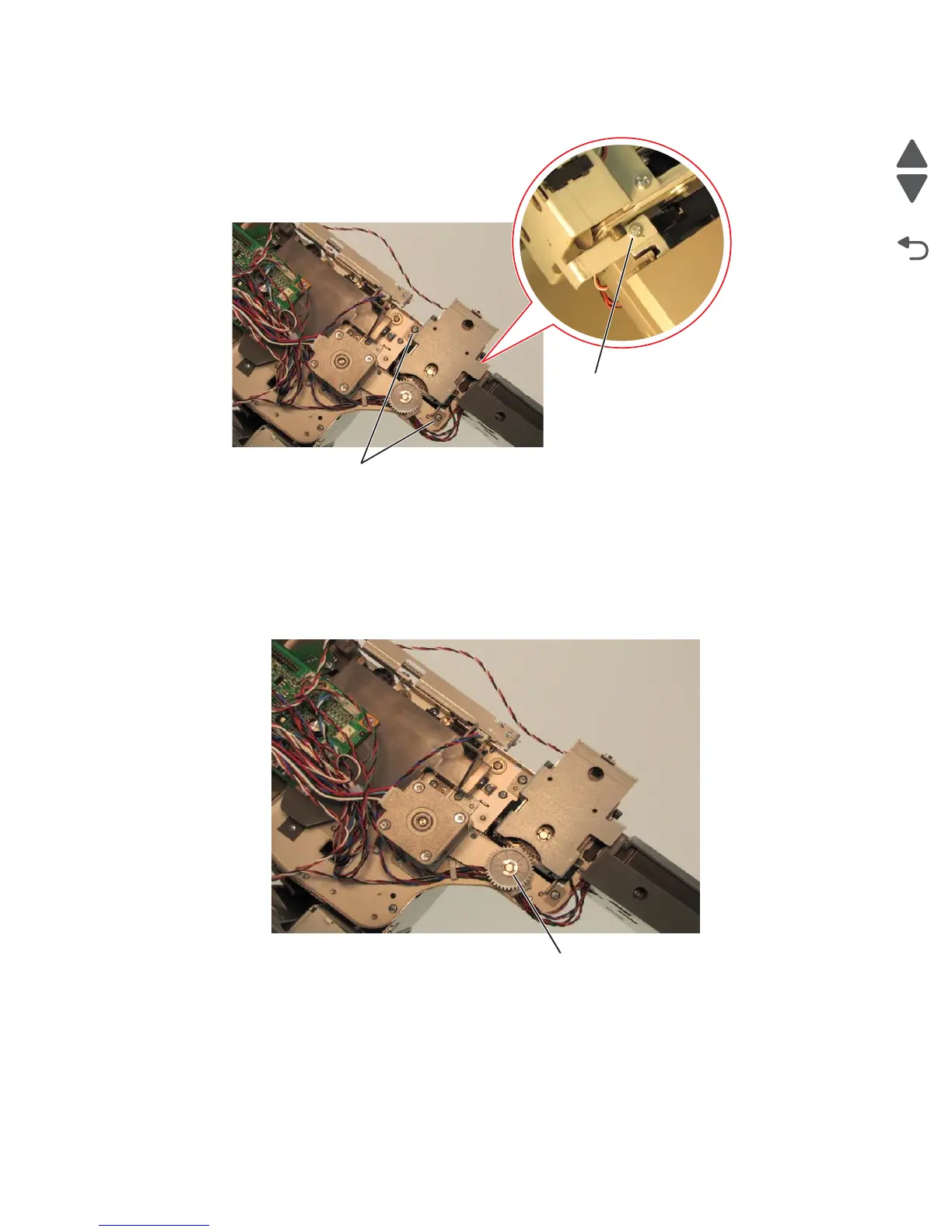

5. Remove the two screws (C) and one screw (D).
6. Move the punch unit to the left and right while you pull it out of the frame.
HTU punch gear removal
1. Remove the HTU rear standard bin cover. See “HTU rear standard bin cover removal” on page 4-312.
2. Remove the HTU top right cover See“HTU top right cover removal” on page 4-329.
3. Remove the E-clip (A), and then remove the gear and gear cap.
