Lexmark C792 series - 550-Sheet Drawer Assembly Removal; 550-Sheet Media Tray Assembly Removal

To Next Page

To Previous Page

4-166 Service Manual

5062

Go Back

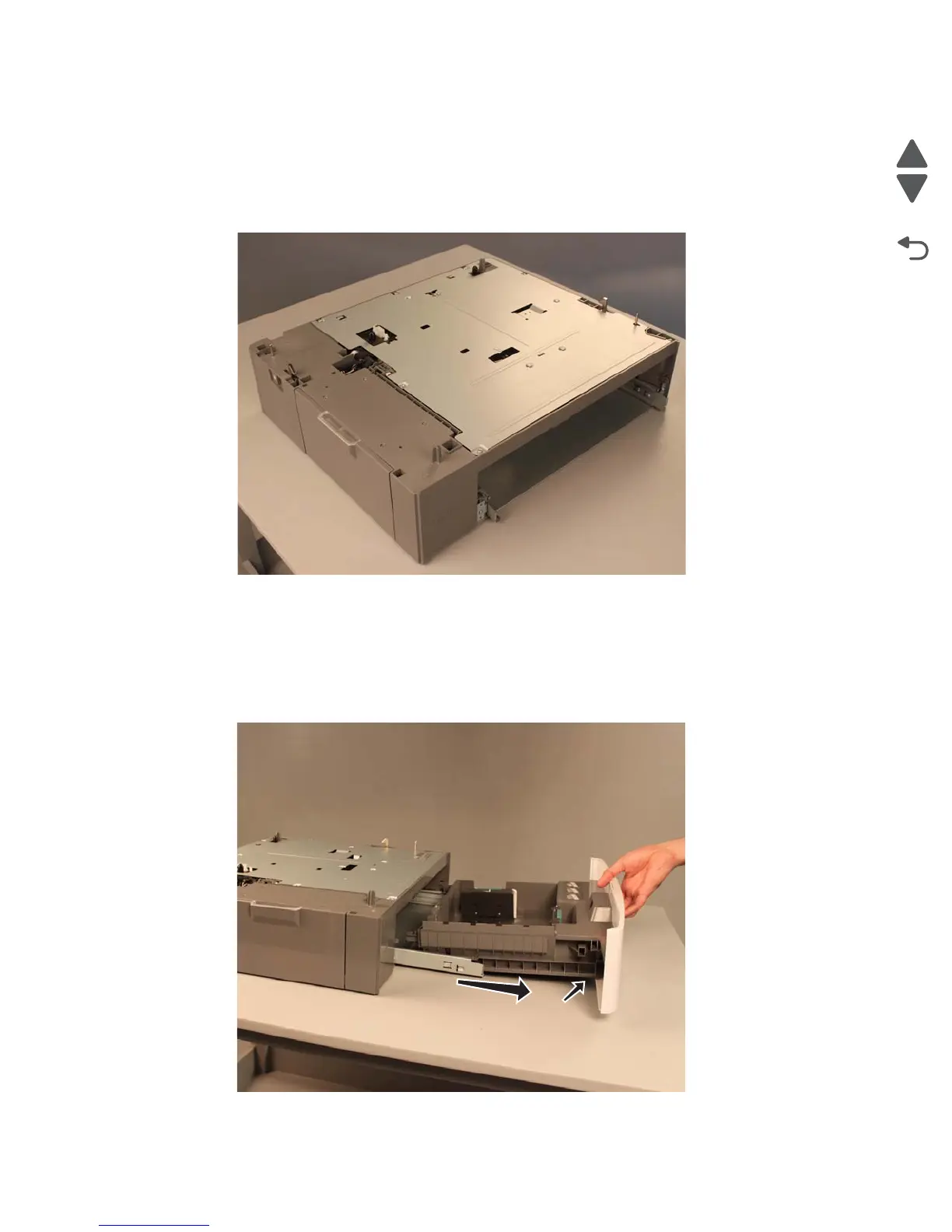

550-sheet drawer assembly removal

See “Optional 550-sheet tray” on page 7-17 for the part number.

1. Remove the 550-sheet media tray assembly from the 550-sheet drawer assembly.

The 550-sheet drawer assembly remains.

550-sheet media tray assembly removal

See“Optional 550-sheet tray” on page 7-17 for the part number.

1. Open the media tray assembly until it stops.

2. Slightly lift up the media tray.
