HTU to printer cable removal

1. Remove the right inner cover. See “HTU right inner cover removal” on page 4-316.

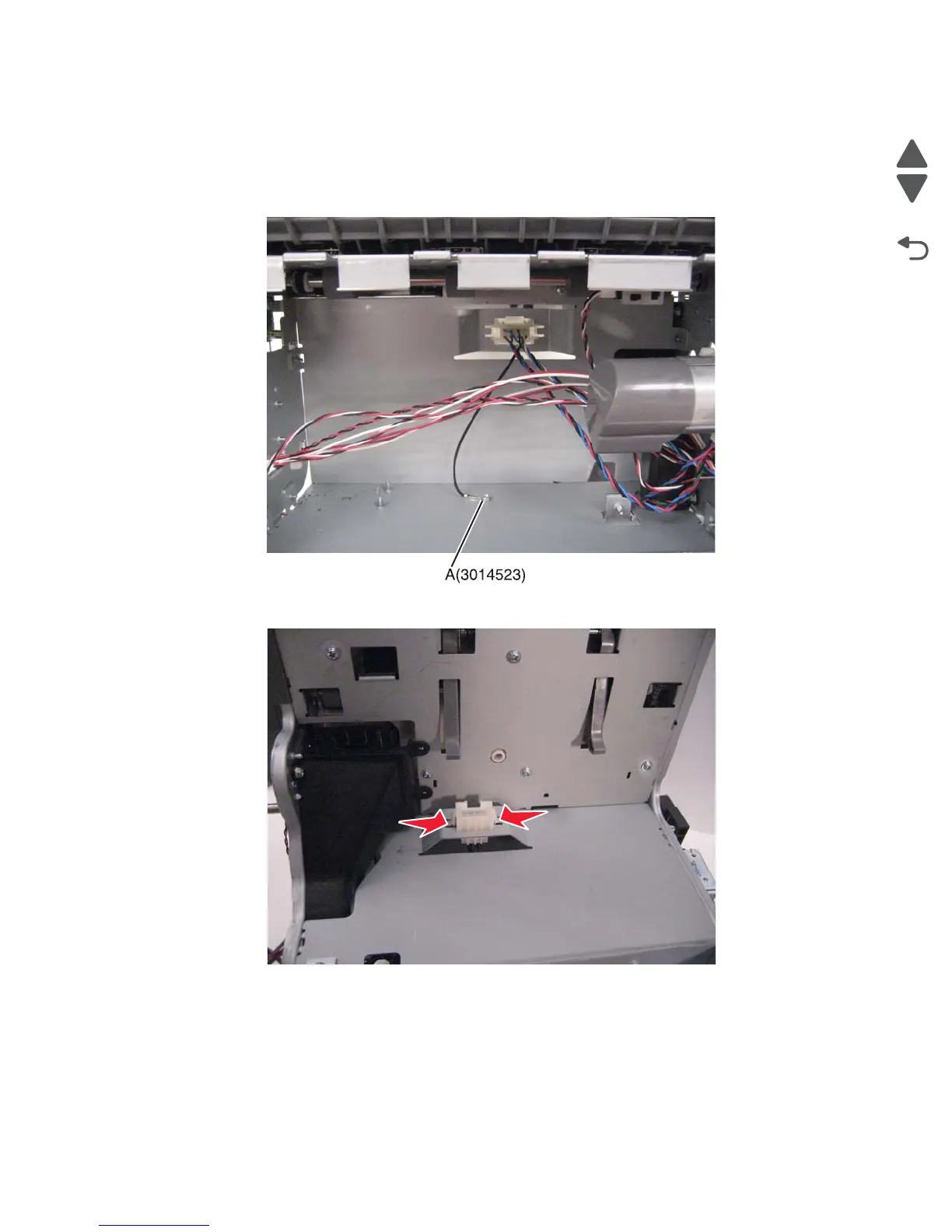

2. Remove the screw (A) to disconnect the ground cable.

3. Press on the tabs to release the connector.
