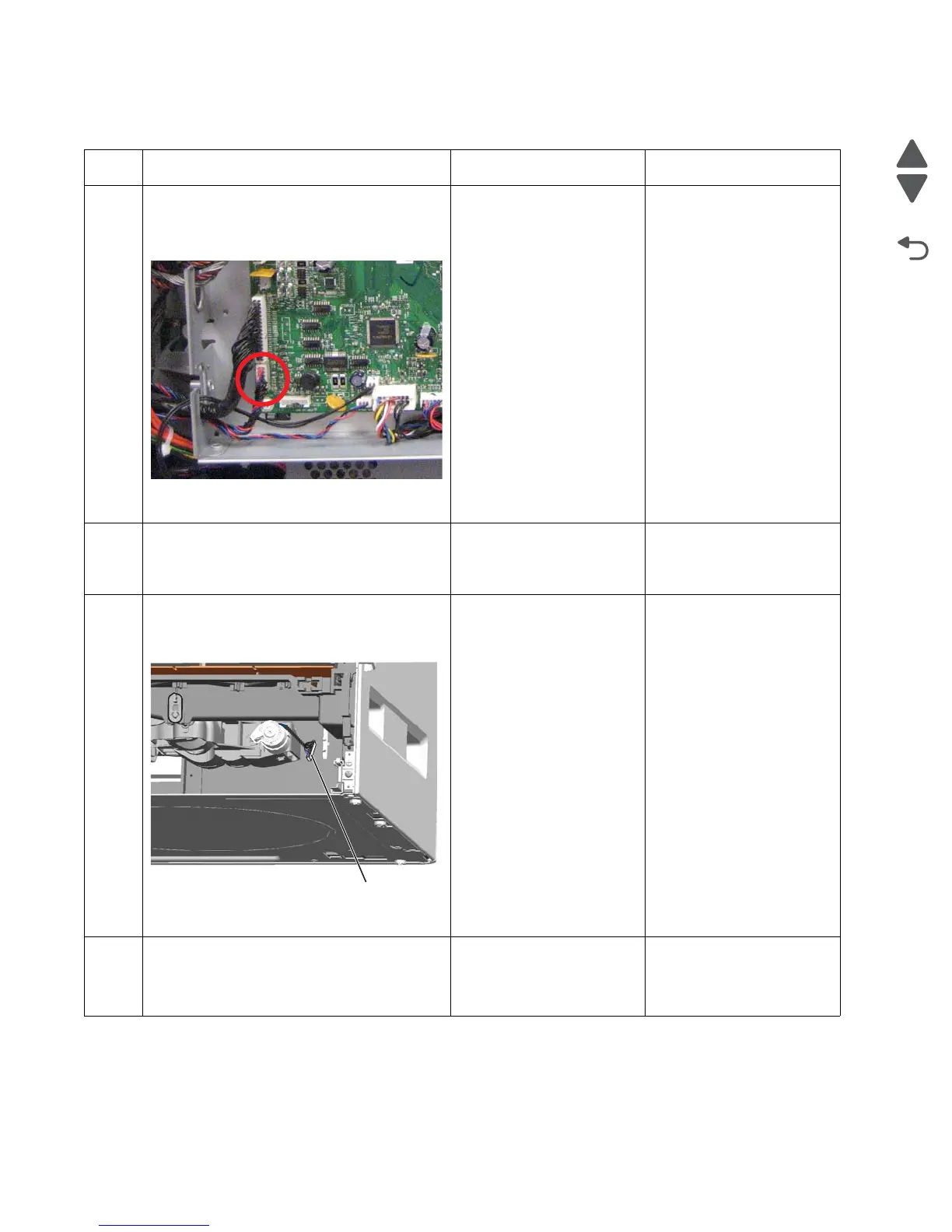

146.xx—Autocomp (tray 1) motor error service check
Step Questions / actions Yes No
1 Turn the printer off, and open the system
board shield. Check the cable in connector
JTRAY1 (A) for proper connection to the
system board.
Is the cable properly connected?
Go to step 2. Reseat the cable.
2
Check the cable for damage.
Is the cable damaged?
Replace the Tray 1
machine side cable. See
“Autocomp W2W cable”
on page 7-56.
Go to step 3.
3
Remove the standard media tray. Check the
cable (A) from the paper pick mechanism
assembly to the printer.
Is the cable properly connected?
Go to step 4. Reseat the cable.
4
Remove the paper pick mechanism
assembly. See “Paper pick mechanism
assembly removal” on page 4-120.
Does the error reoccur?
Replace the system board.
See “System board
removal” on page 4-151.
Problem solved.
A
