HTU transport motor removal
1. Remove the right inner cover. See “HTU right inner cover removal” on page 4-316.

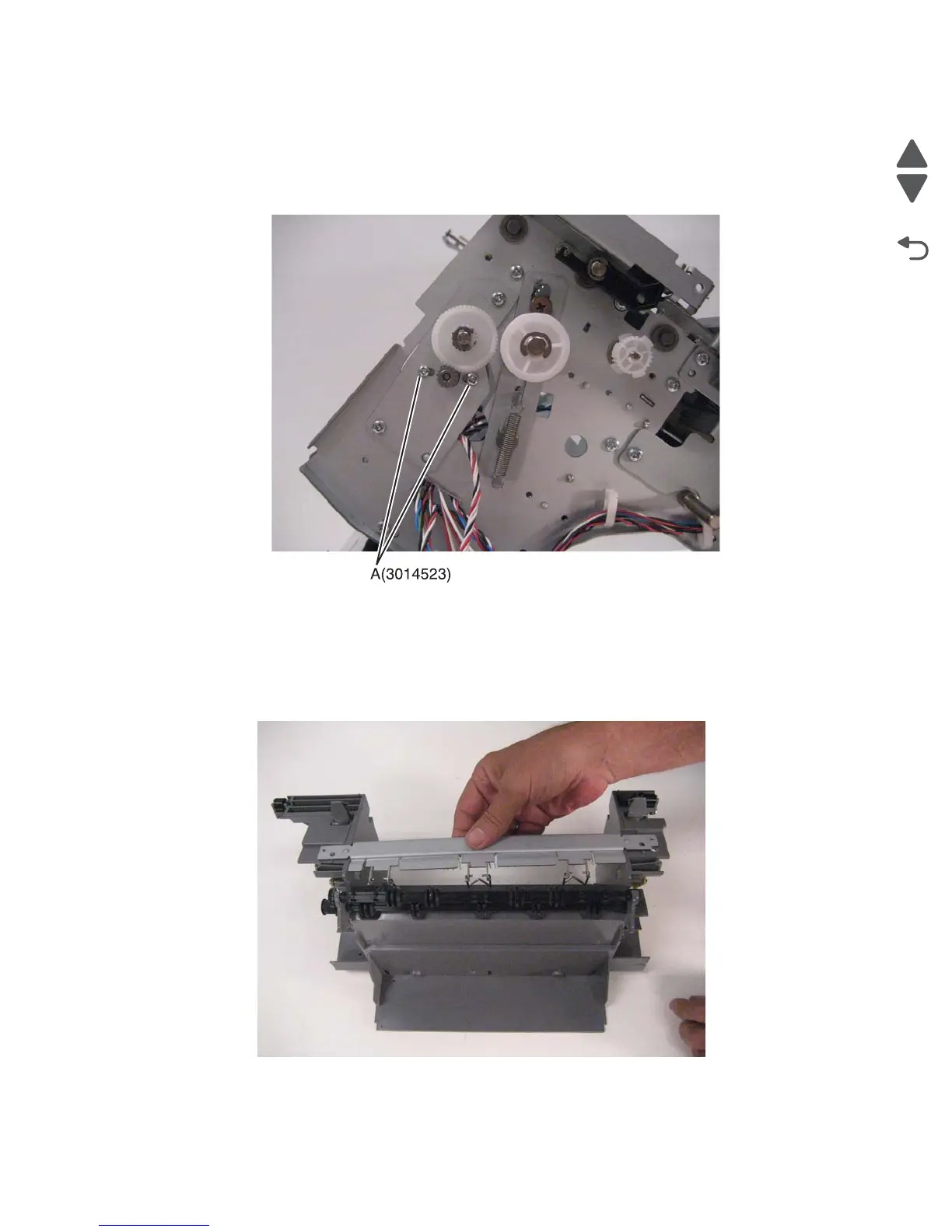

2. Remove the two screws (A), and then remove the transport motor.
HTU upper exit shaft removal
1. Remove the right inner cover. See “HTU right inner cover removal” on page 4-316.
2. Remove the metal beam slide.
