Repair information 4-131
5062
Color alignment (cyan, yellow, and magenta)
1.
Open the front access door, and remove the cyan and magenta print cartridges.

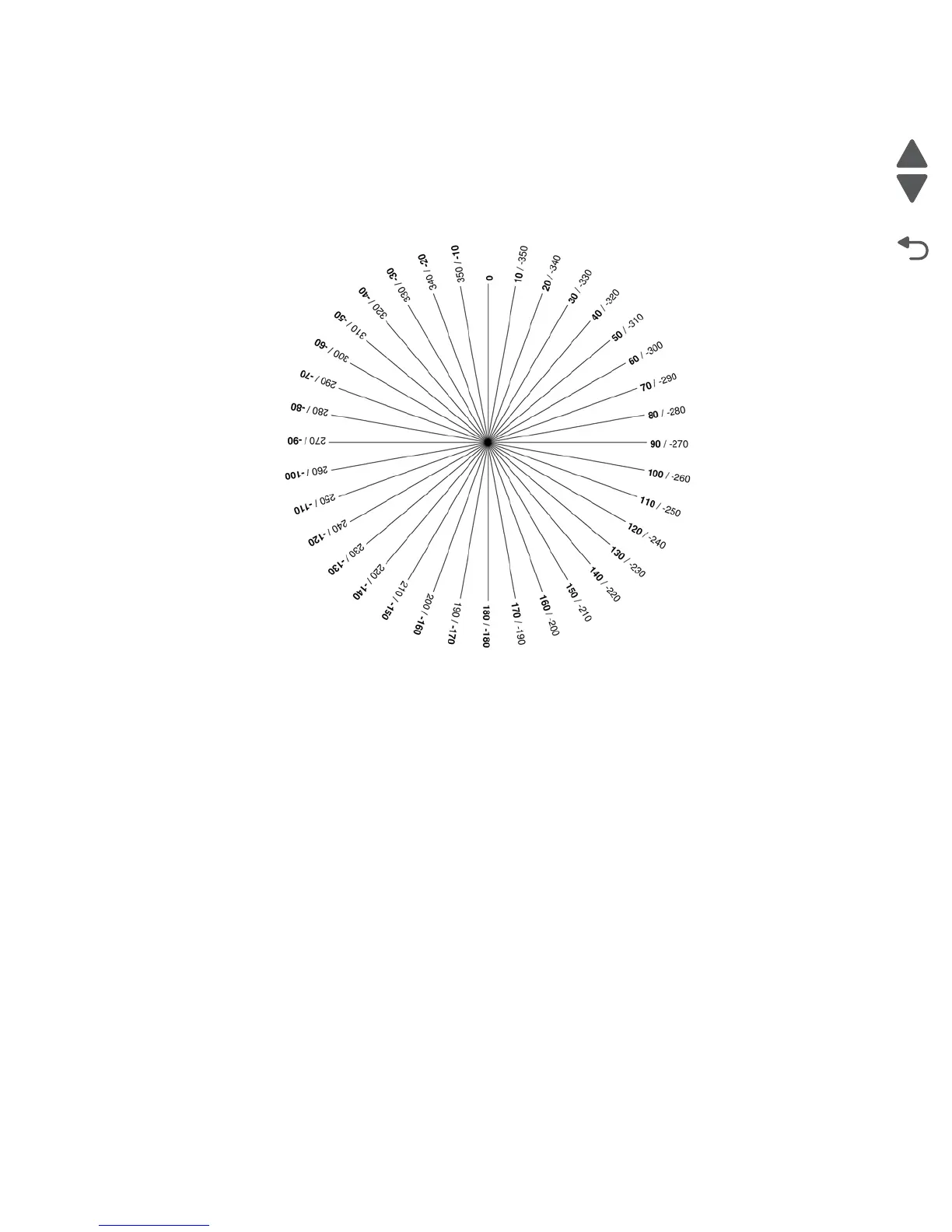

2. Locate the “Color skew adjustment tool” page that came with the printhead instructions.
To use the skew tool, punch a screwdriver through the center of the wheel. Using a mark on the
screwdriver handle as a point of reference, turn the paper until 0 lines up with your mark.
3. From the Diagnostic menu, navigate to:
ALIGNMENT MENU > Yellow > Quick Test
Two alignment pages print. The first page is for adjusting the Skew and Top Margin, and the second page
is for the Left Margin and Right Margin. For now you just need the Skew instructions on the first page.
