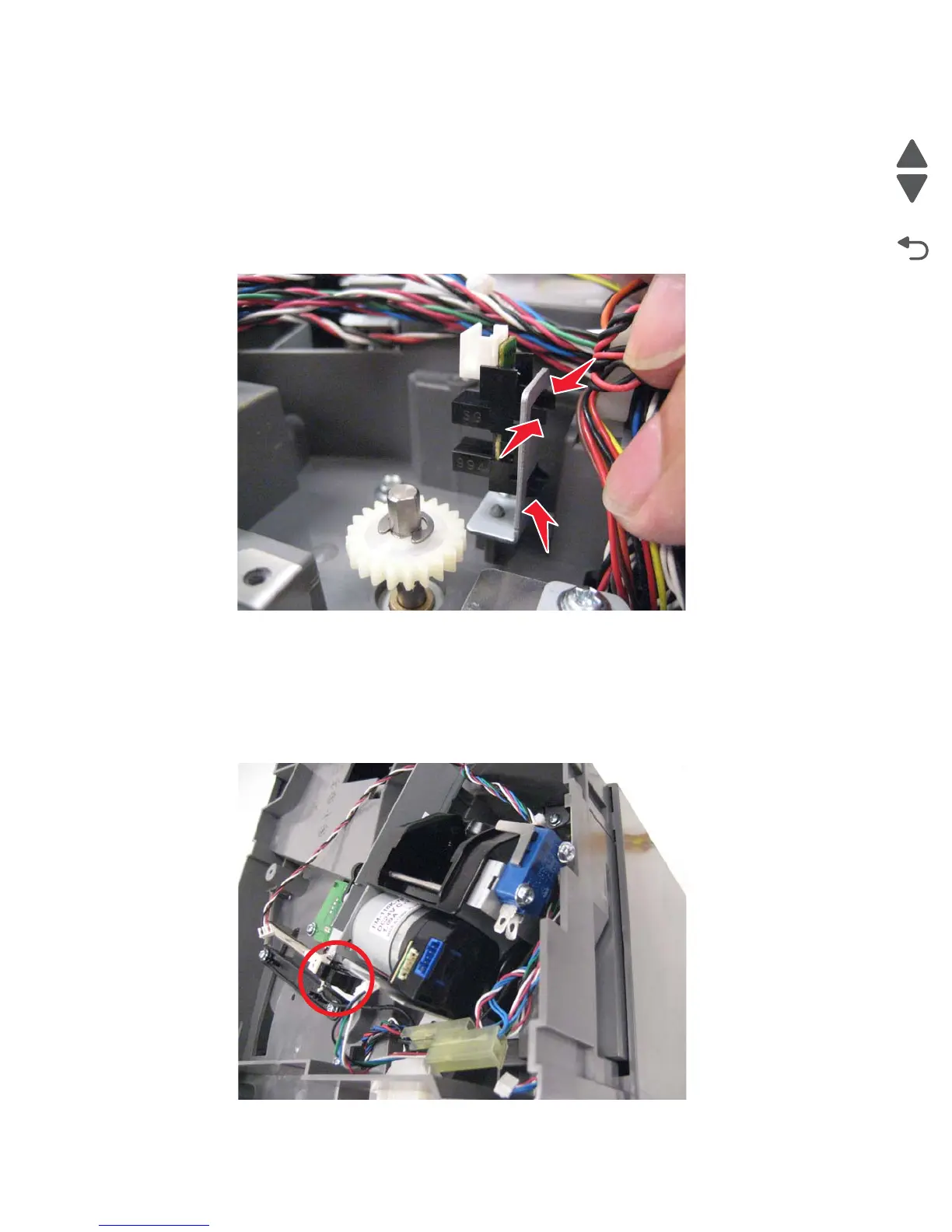

Finisher or stacker sensor (paddle HP) removal
See “Finisher/High-capacity output stacker assembly (continued)” on page 7-27 for the part number.
1. Remove the option from the printer.
2. Remove the paddle drive motor. See “Finisher or stacker paddle drive motor assembly removal” on
page 4-267.
3. Disconnect the cable from the sensor.
4. Press the tabs to remove the sensor.
Finisher sensor (stapler access door interlock) removal
1. Remove the finisher from the printer.
2. Remove the finisher rear cover. See “Finisher or stacker rear cover removal” on page 4-269.
3. Disconnect the cable from the sensor.
4. Pinch tab to remove the sensor.
