Diagnostic information 2-45
5062
Skew
CHECK THE PRINTER SKEW

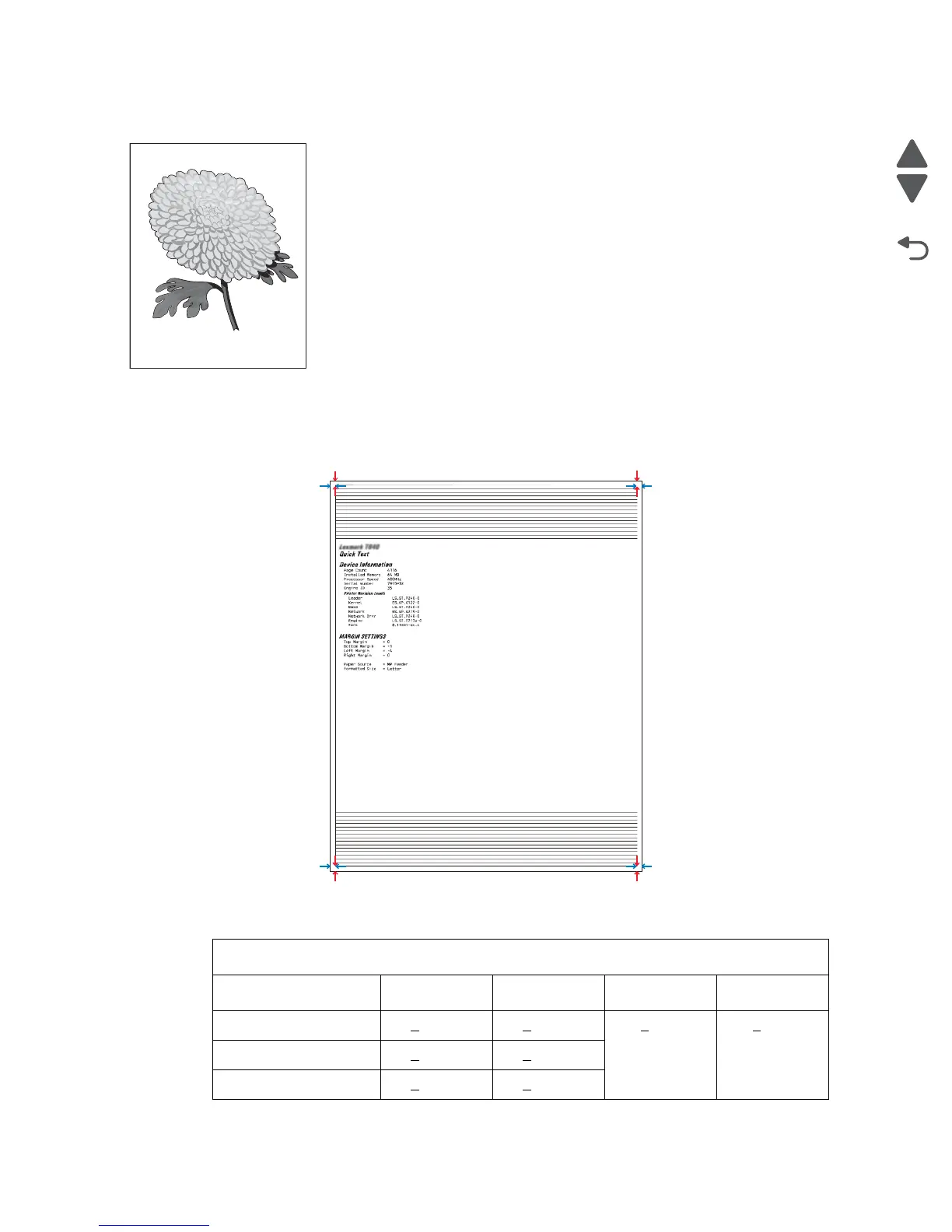

1. Measure from the edge of the paper to the black line to find L1, L2, T1, T2, R1, R2, B1, and B2 as shown
below:
2. Determine if the printer meets the skew specifications based on the values listed on the table.
Skew Specification
(L2-L1) (R2-R1) (T2-T1) (B2-B1)
Letter <
1.4 mm <1.4 mm <1 mm <1 mm
A4 <
1.5 mm <1.5 mm
Legal <
1.8 mm <1.8 mm
Leading edge
Trailing edge
