Repair information 4-65

5062

Go Back

Fuser drive assembly removal

See “Rear” on page 7-15 for the part number.

1. Remove the rear cover. See “Rear cover removal” on page 4-20.

2. Remove the fuser assembly. See “Fuser assembly removal” on page 4-63.

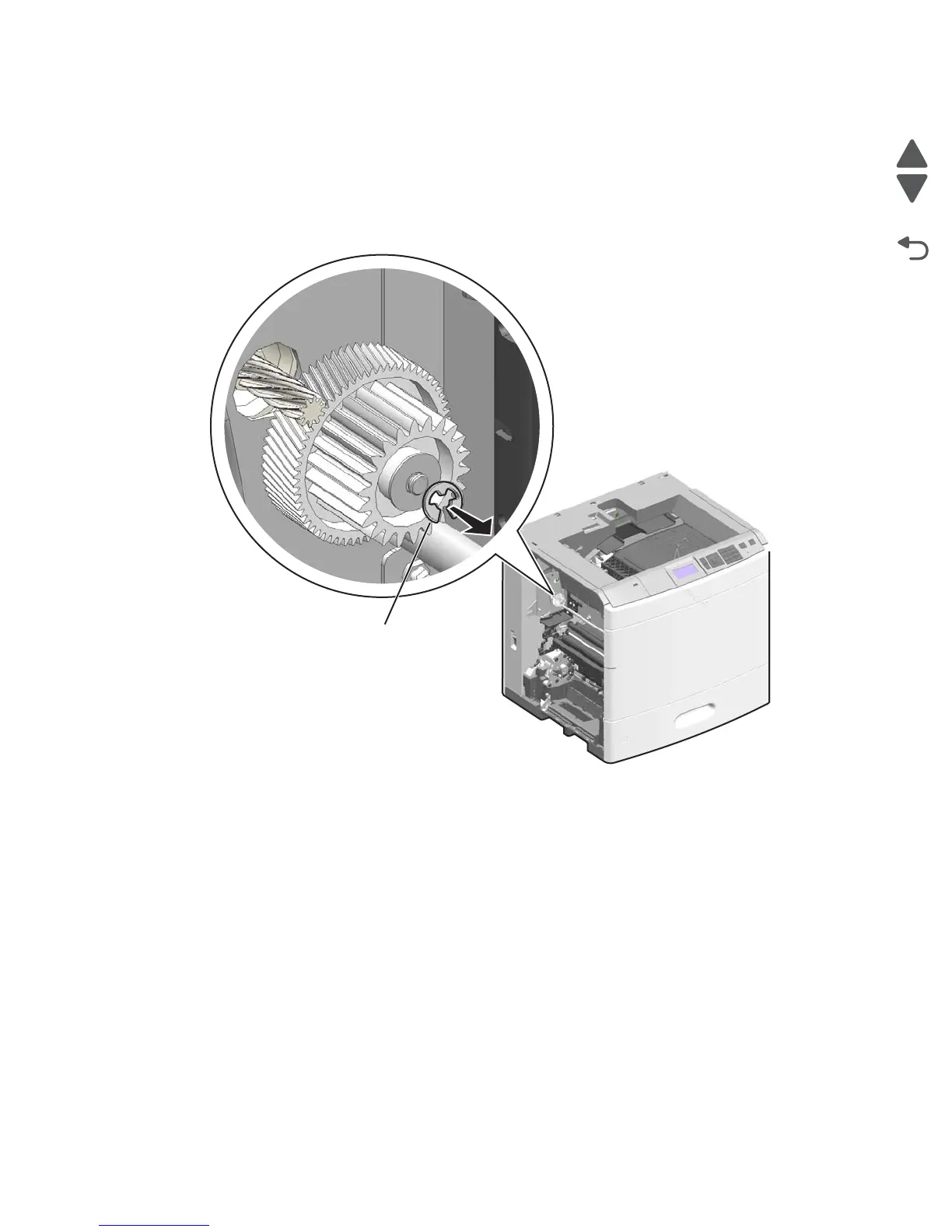

3. Remove the E-clip (A) and the washer under it from the fuser gears, and then slide the gears off the post.

A (1126829)
