HTU locking lever card removal
1. Remove the locking lever. See “HTU locking lever removal” on page 4-295.
2. Disconnect the cable to remove the locking level card.
HTU lower redrive guide removal
1. Remove all output options from the printer.
2. Remove the upper guide. See “HTU upper guide removal” on page 4-332.

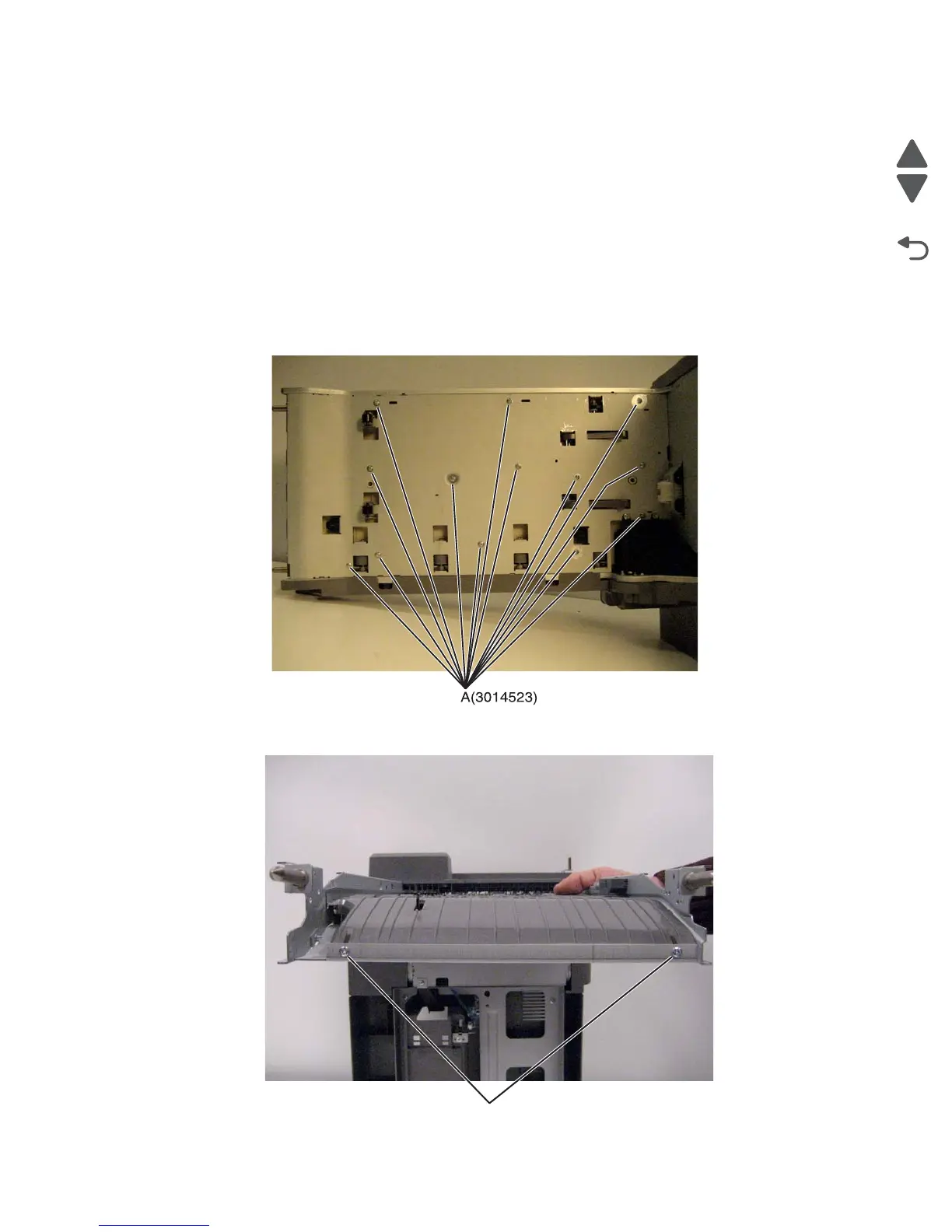

3. Remove 13 screws (A) from the bottom of the transport unit..
4. Remove the two screws (B) from the edge of the transport unit.
B (3015189)
