Lexmark C792 series

To Next Page

To Previous Page

4-298 Service Manual

5062

Go Back

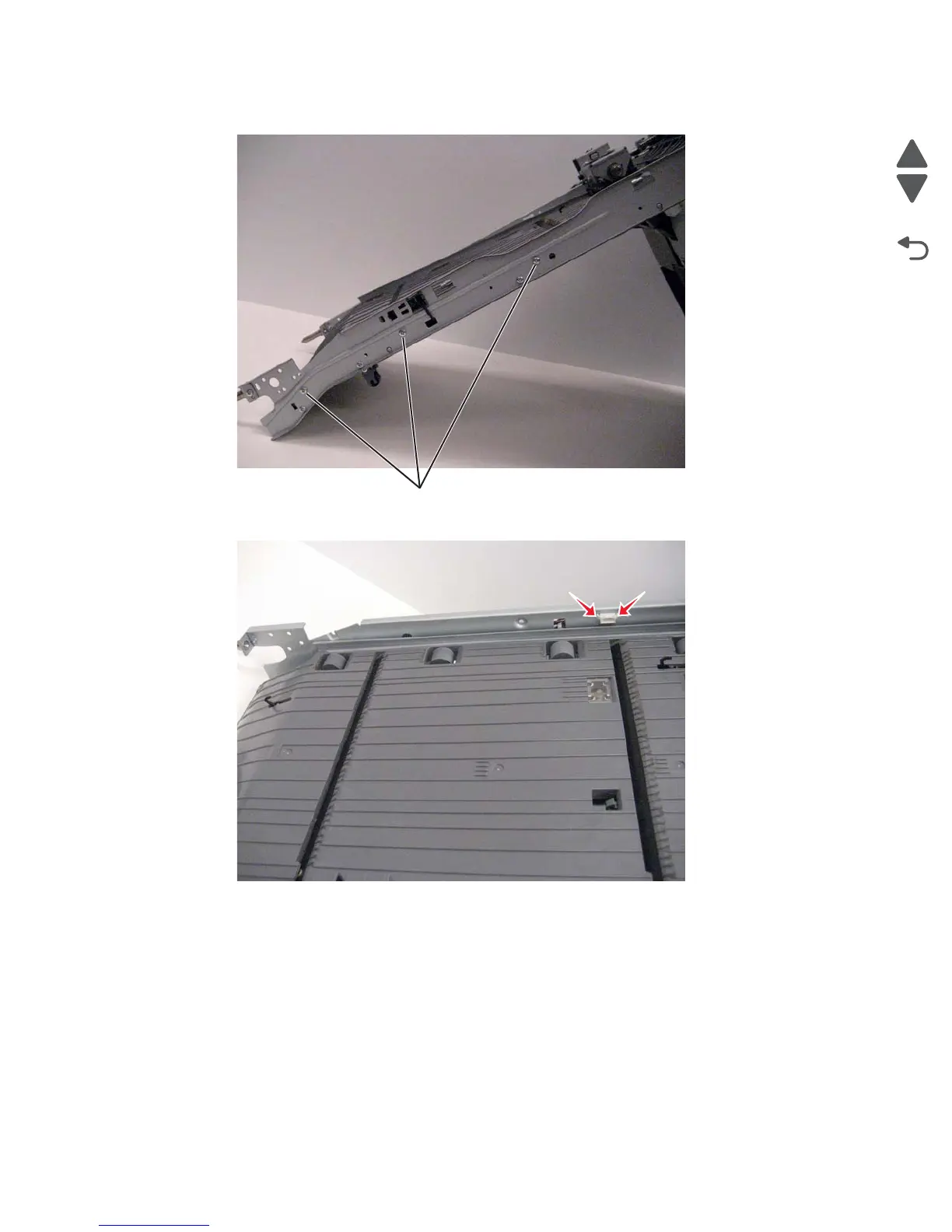

5. Remove the three screws (C) from the front of the transport unit.

6. Press the tabs to remove the connector from the rear frame.

C (3015189)
