Lexmark C792 series

To Next Page

To Previous Page

Repair information 4-299

5062

Go Back

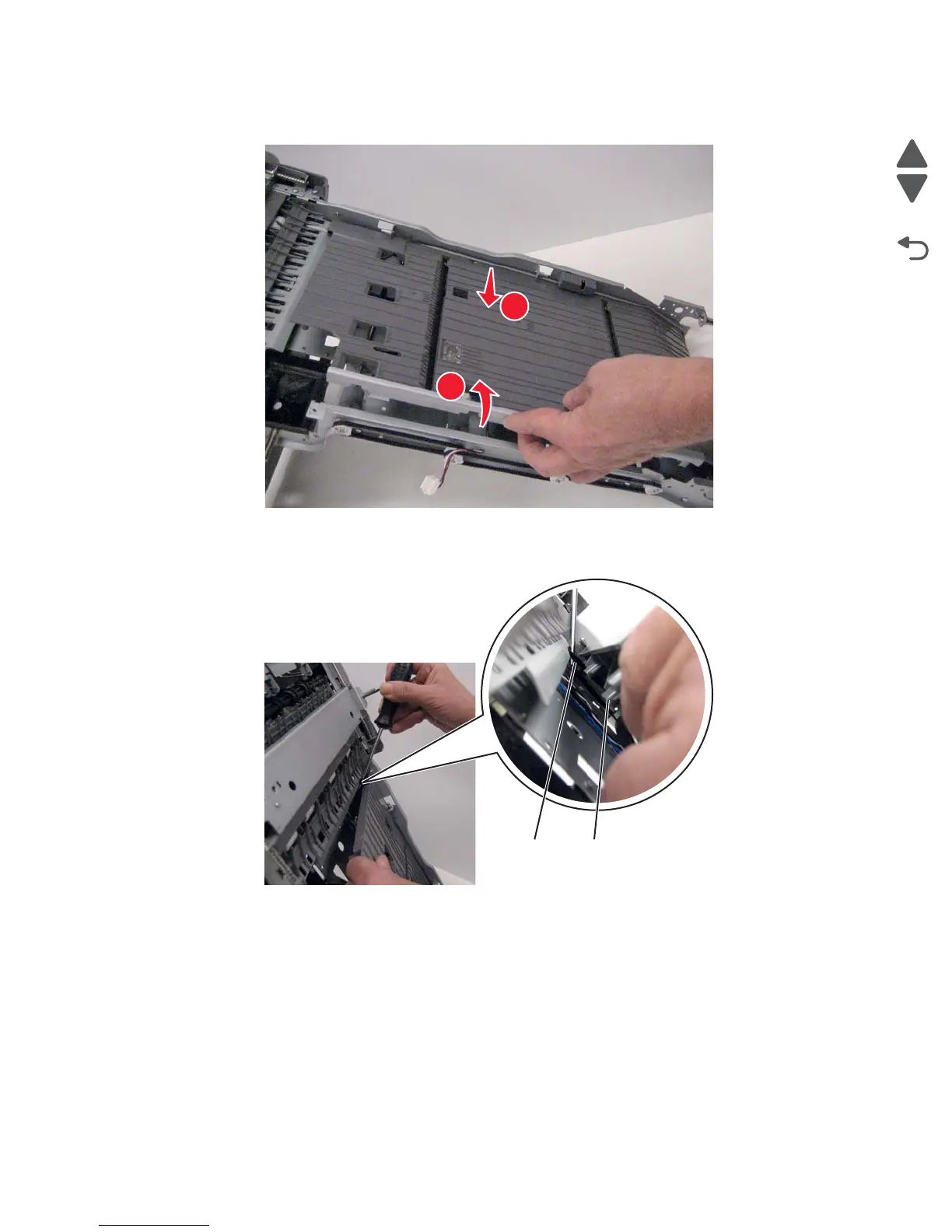

7. Lift the back edge of the plate, and then slide the plate to the rear to remove it.

Installation note: When installing the guide, be sure to use a screwdriver to clear the post (A) from the belt

(B) as shown.
