Staging paper path reference edge adjustment
After installing a new staging paper path reference edge assembly, use the following instructions to make sure it
is properly aligned.
Aligning the staging paper path reference edge
1.
Verify that the media is square. Do the following steps.

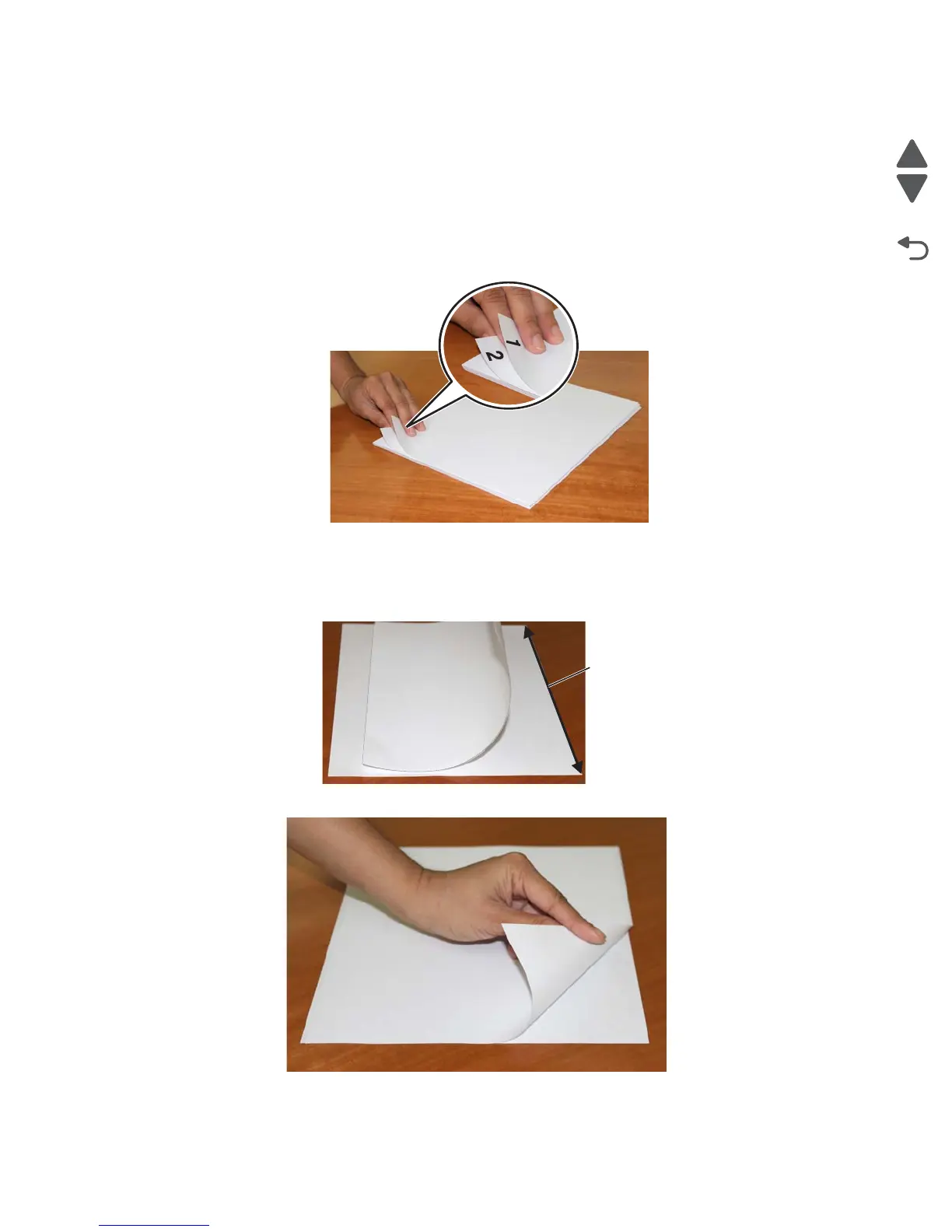

a. Remove two consecutive pieces of paper from the ream.
b. Flip one of the pages over in the direction shown below.
c. This shows the final position of the two pages.
1
2
Long Edge
1
2
1
