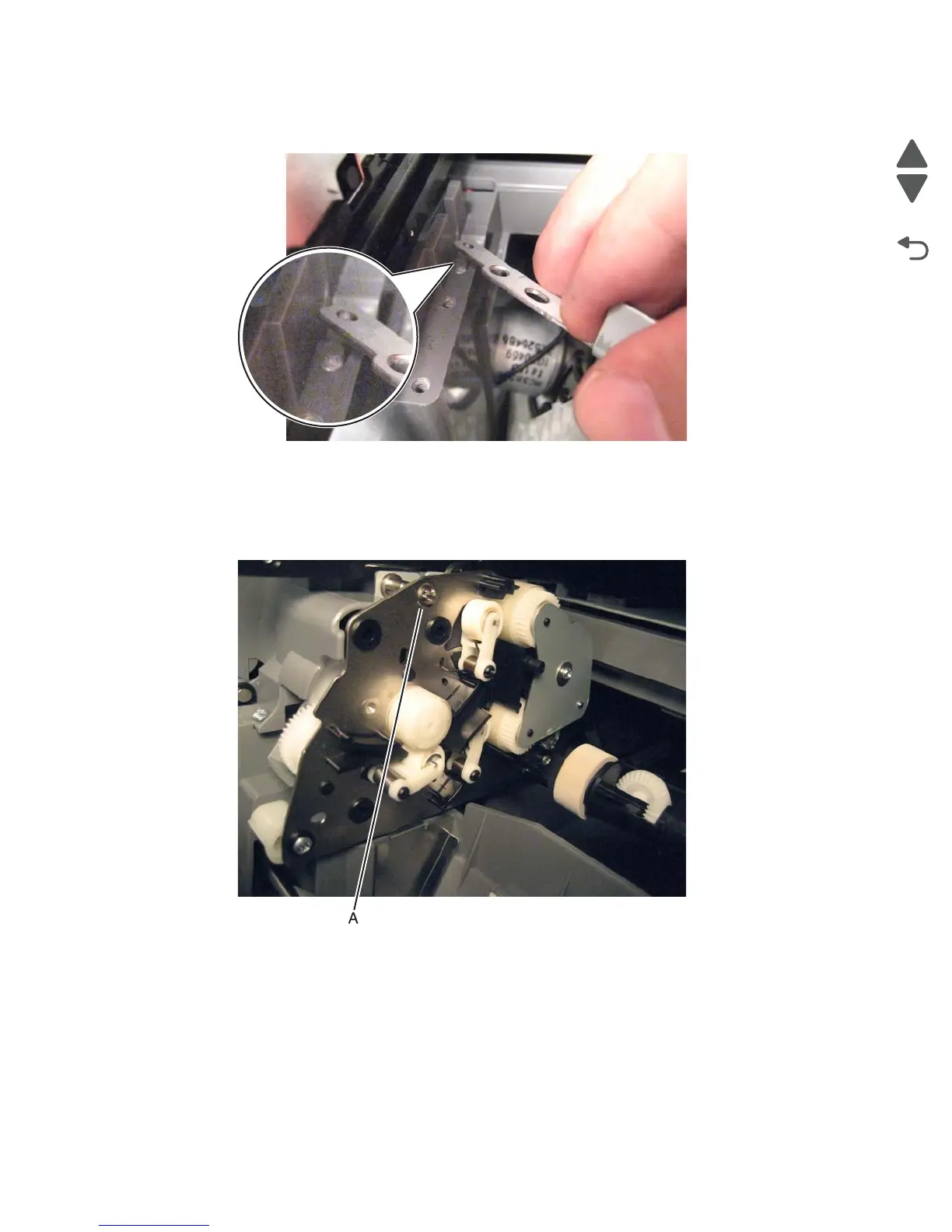

• Place the slot in the ITU DS roller plate over the ridge on the frame, and then swing the plate into place to
reattach the two screws.
• Check the alignment of the reference edge. See “Aligning the staging paper path reference edge” on
page 4-147.
Notes:
• When installing the staging paper path reference edge, do not turn the adjustment screw
during installation.
• Do not replace, or adjust the printhead and the staging paper path reference at the same time.
• See “Pick arm stuck down service check” on page 2-164 to put the pick arm back to
position.
