Repair information 4-145

5062

Go Back

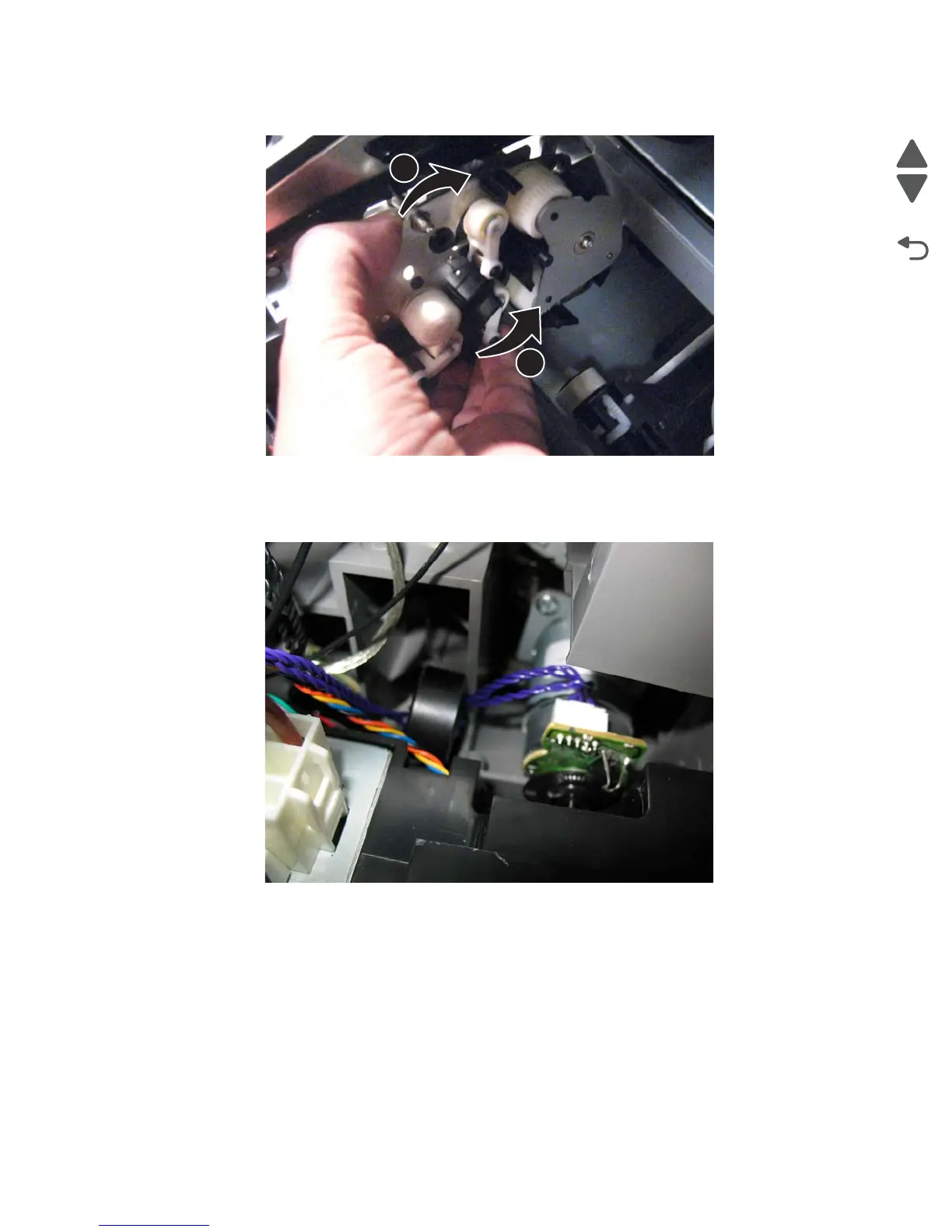

12. Lift the bottom of the staging assembly and then rock it back to free it from the frame.

13. Disconnect the two cables from the motors to remove the assembly.

Installation notes:

• Be sure the duplex motor cable is not pinched or bound by the reference edge assembly.
