Lower frame cable cover removal
See “Front” on page 7-7 for the part number.
1. Remove the ITU assembly. See “ITU assembly removal” on page 4-77.

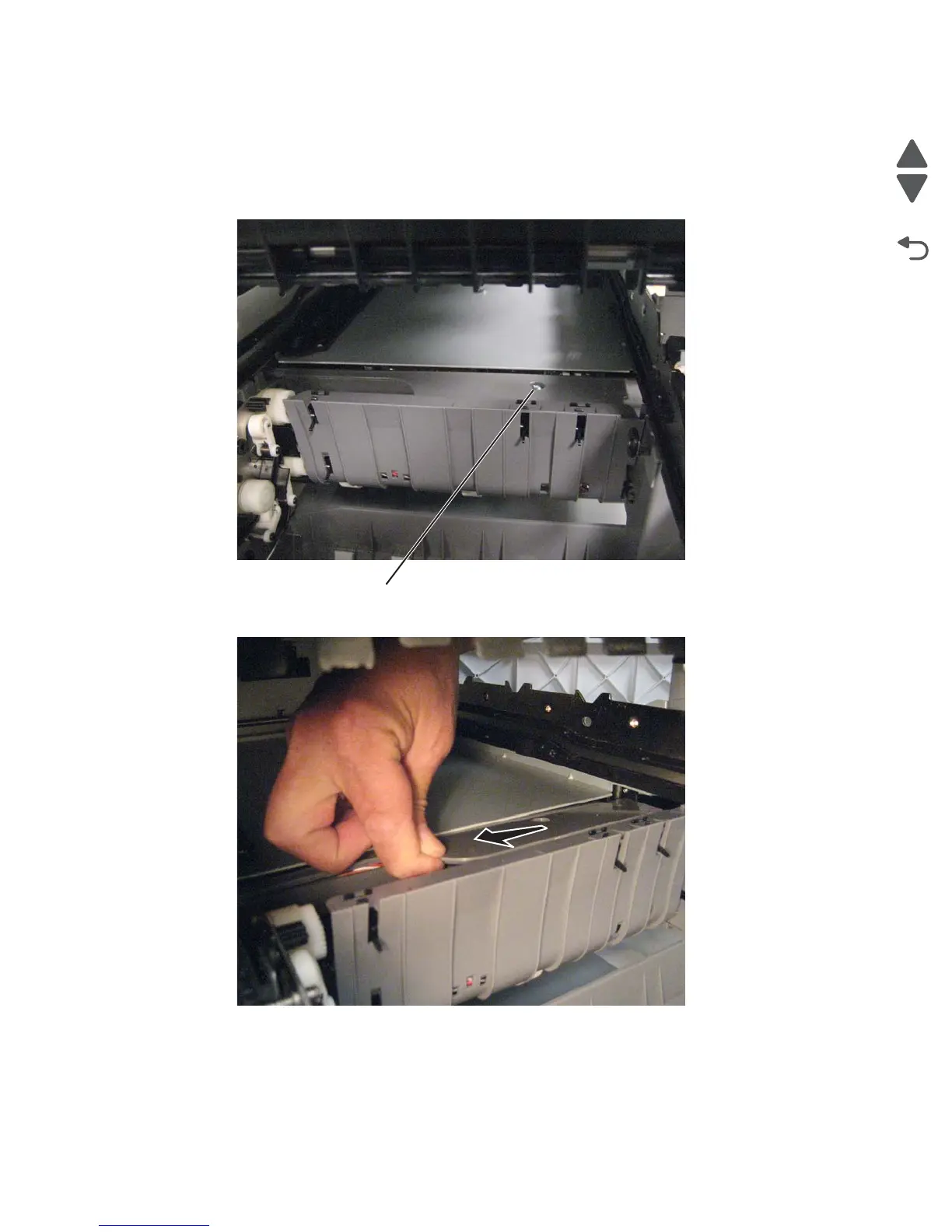

2. Remove the screw (A).
3. Slide the cover toward the rear of the printer, and lift to remove it.
A (88A0323)
