Repair information 4-15

5062

Go Back

Previous

Next

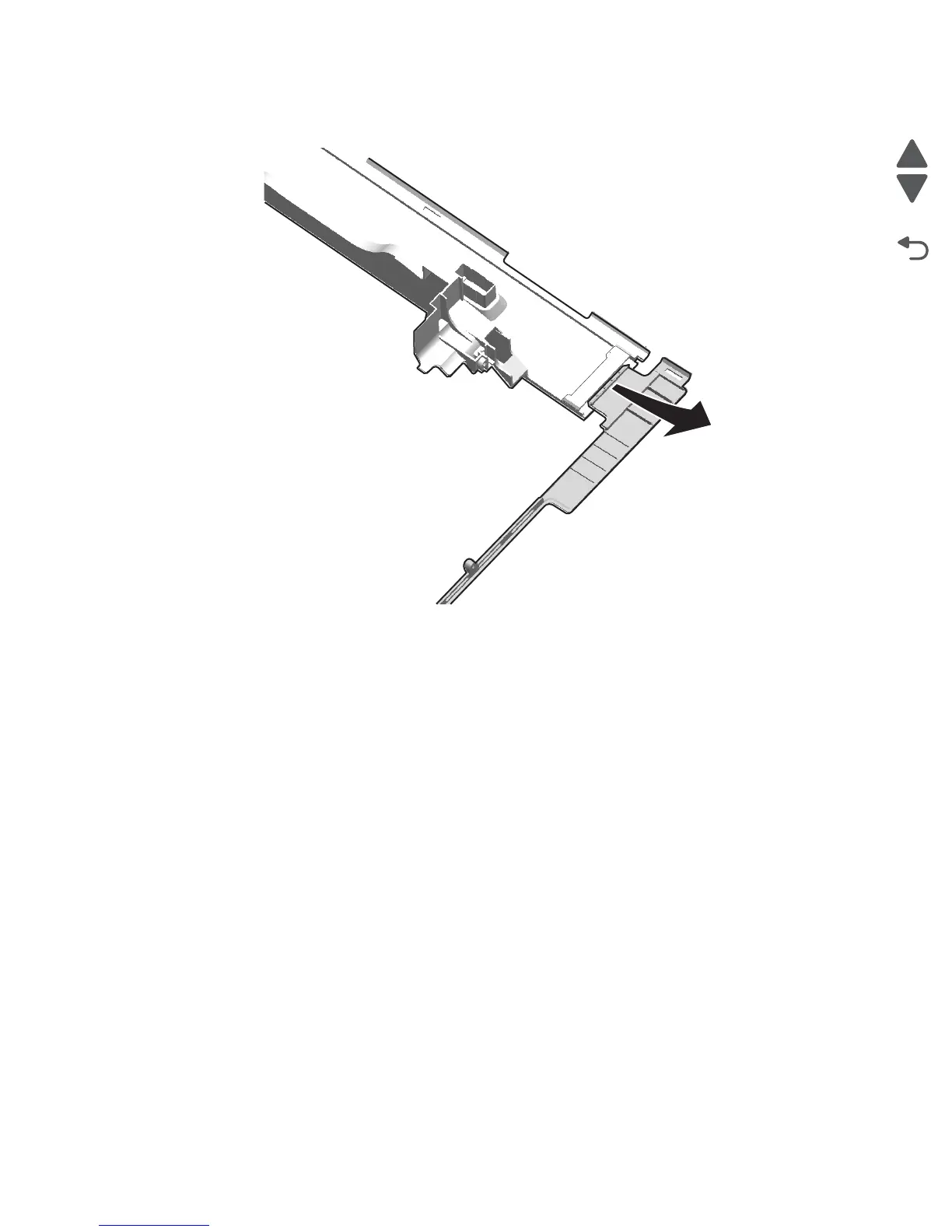

11. Slide the lower left cover down to remove it from the left cover.
