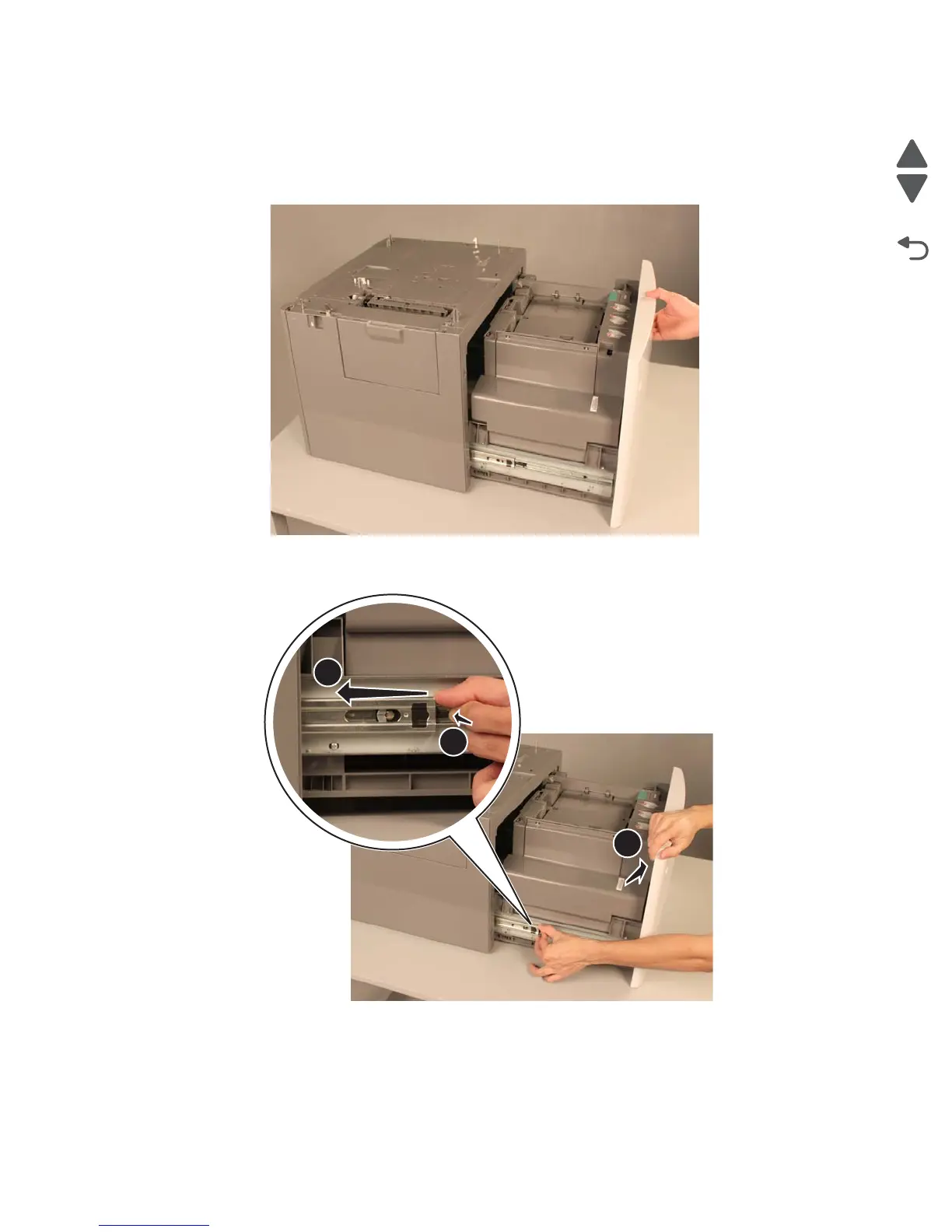

2000-sheet high-capacity feeder media tray assembly removal

See“Optional 2000-sheet high-capacity feeder” on page 7-23 for the part number.

1. Open the media tray assembly until it stops.

2. Slightly pull the media tray to the right, push the latch on the media tray slide, and push the slide until it

clears the tray.

3. Do the same on the other side.
