Lexmark C792 series

To Next Page

To Previous Page

4-216 Service Manual

5062

Go Back

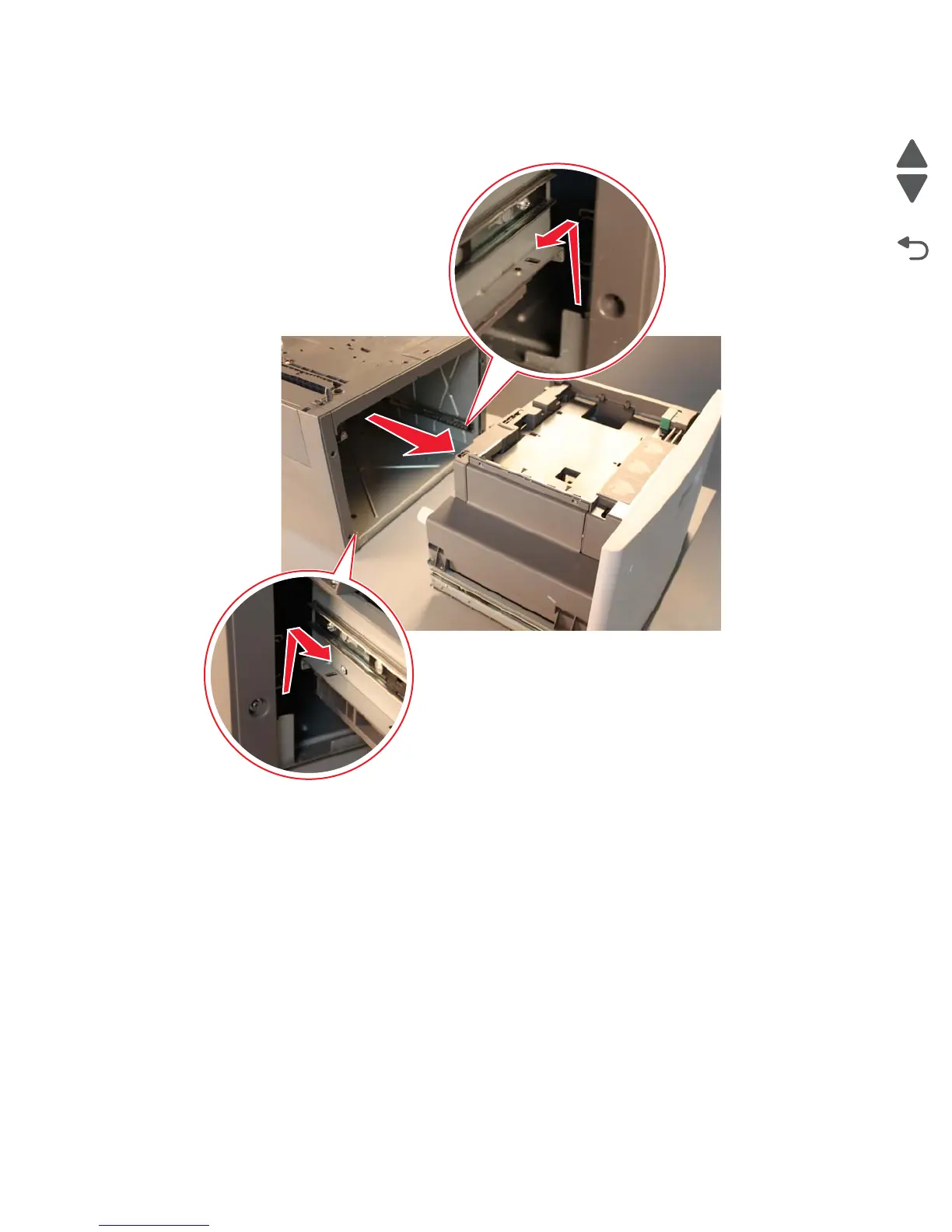

4. Slightly lift the tray to clear it from the stopper and pull to remove the media tray assembly out of the

drawer.
