Operator panel (OP) assembly removal
1. Remove the top cap cover. See “Top cap cover removal” on page 4-29.
Note: If you have any output options installed, then the top cap cover is already removed. Remove the
output options and HTU redrive unit instead.
2. Remove the OP panel bezel. See “OP panel bezel removal” on page 4-18.

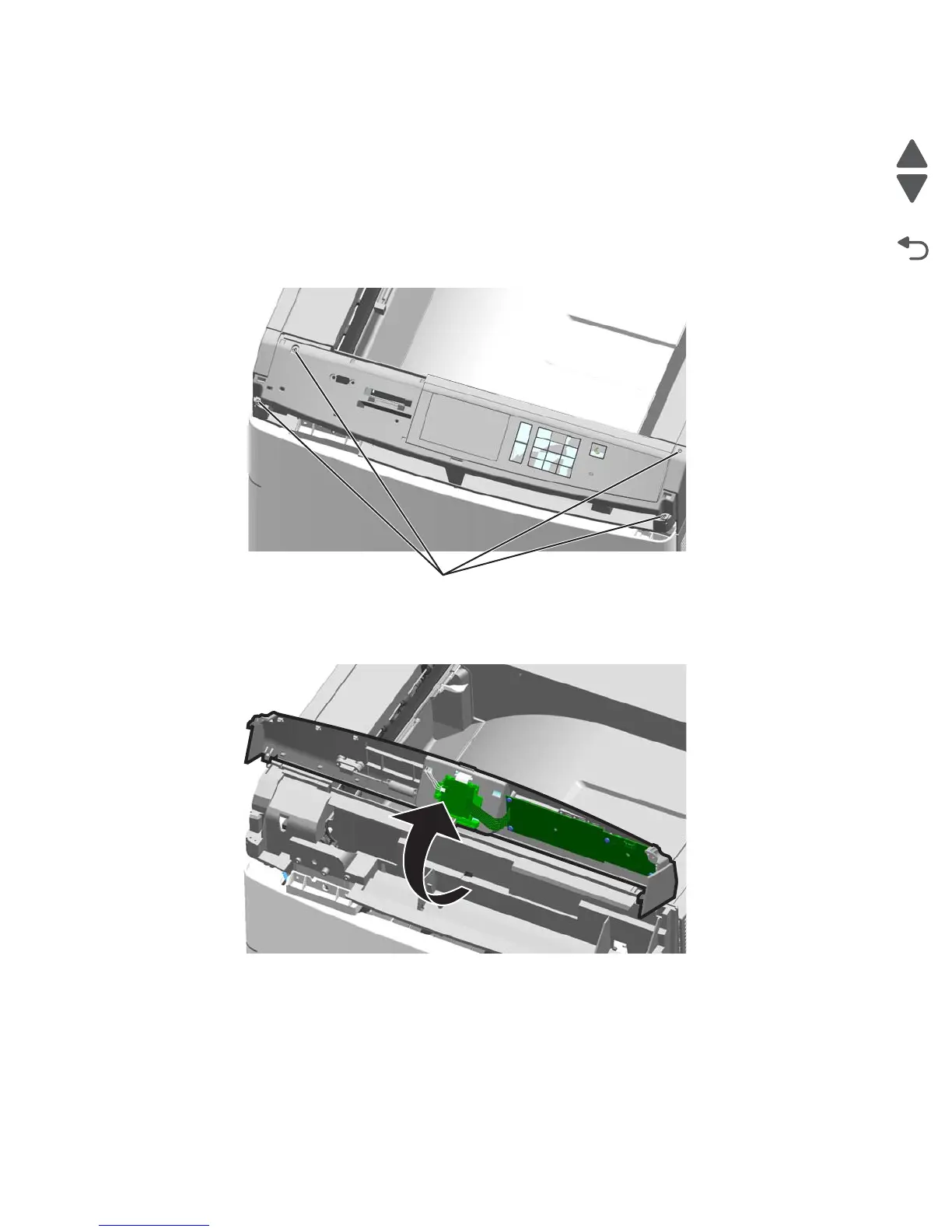

3. Remove four screws (A).
4. Rotate the panel up and pull it out.
A (88A0323)
