Lexmark C792 series - HTU Sensor (Output Option Position) Removal

To Next Page

To Previous Page

Repair information 4-323

5062

Go Back

HTU sensor (output option position) removal

1. Remove all output options from the printer.

2. Remove the rear standard bin cover. See “HTU rear standard bin cover removal” on page 4-312.

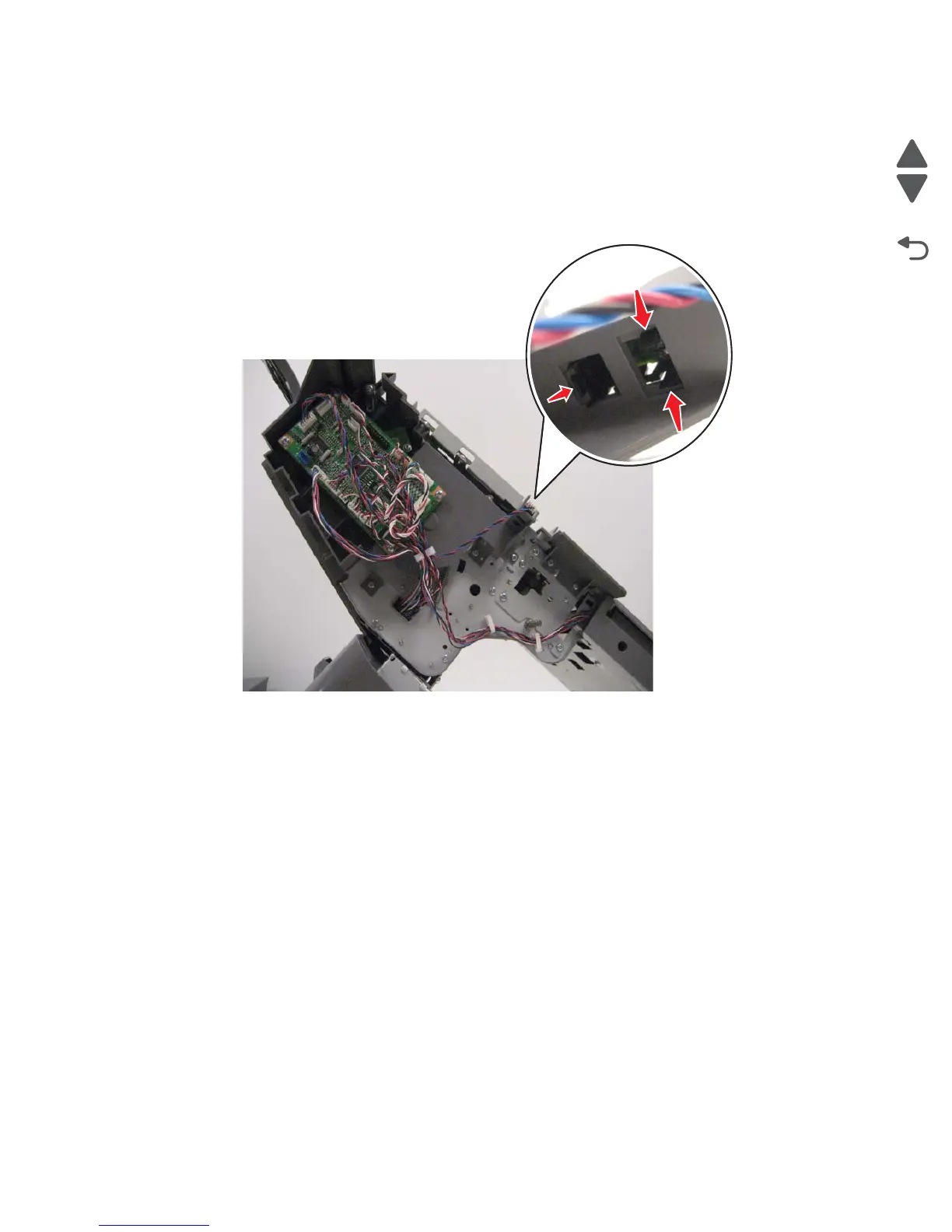

3. Press the tabs to pull out the sensor.

4. Disconnect the cable to remove sensor.
