HTU rear standard bin cover removal

1. Remove all output options from the printer.

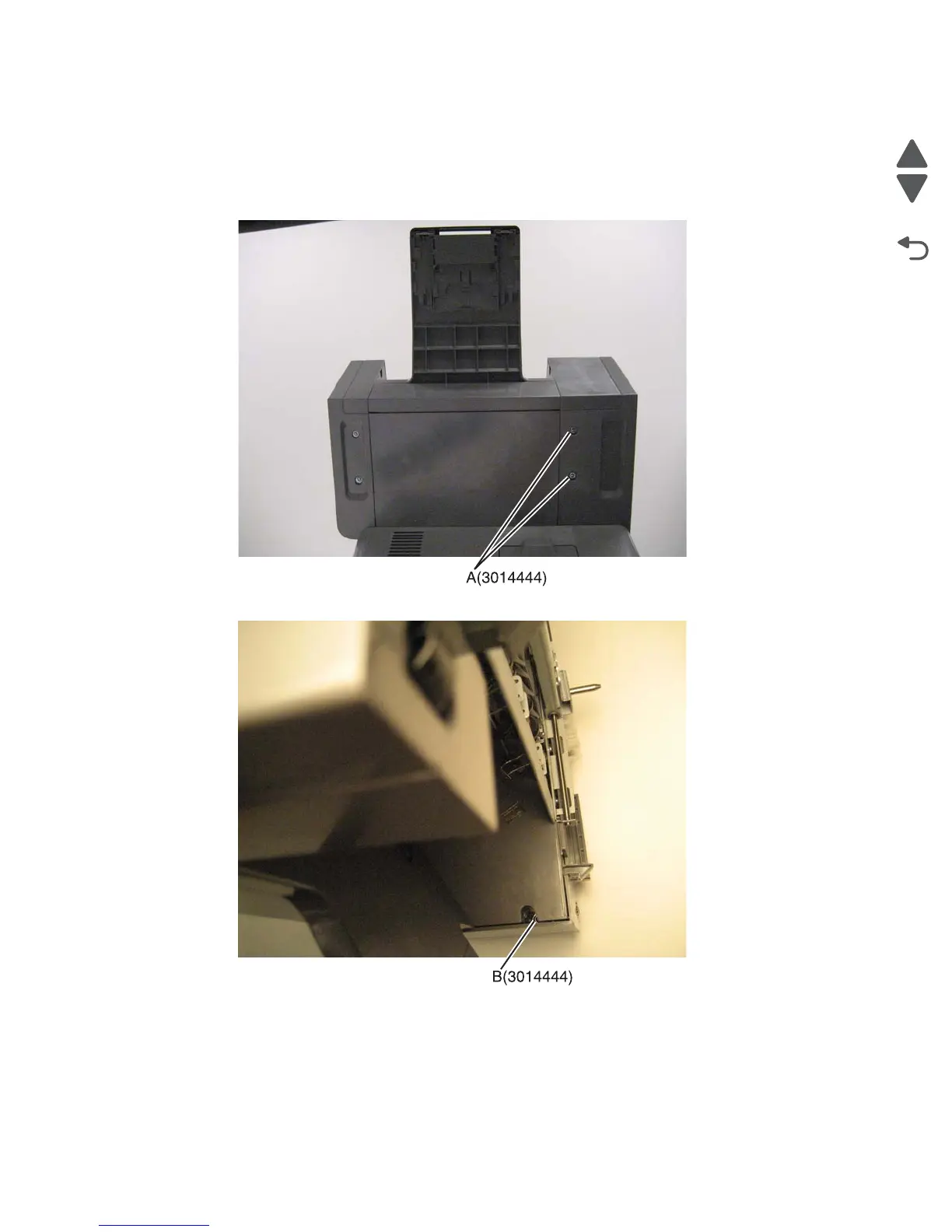

2. Remove two screws (A) from the bottom.

3. Remove the screw (B) inside the output bin.
