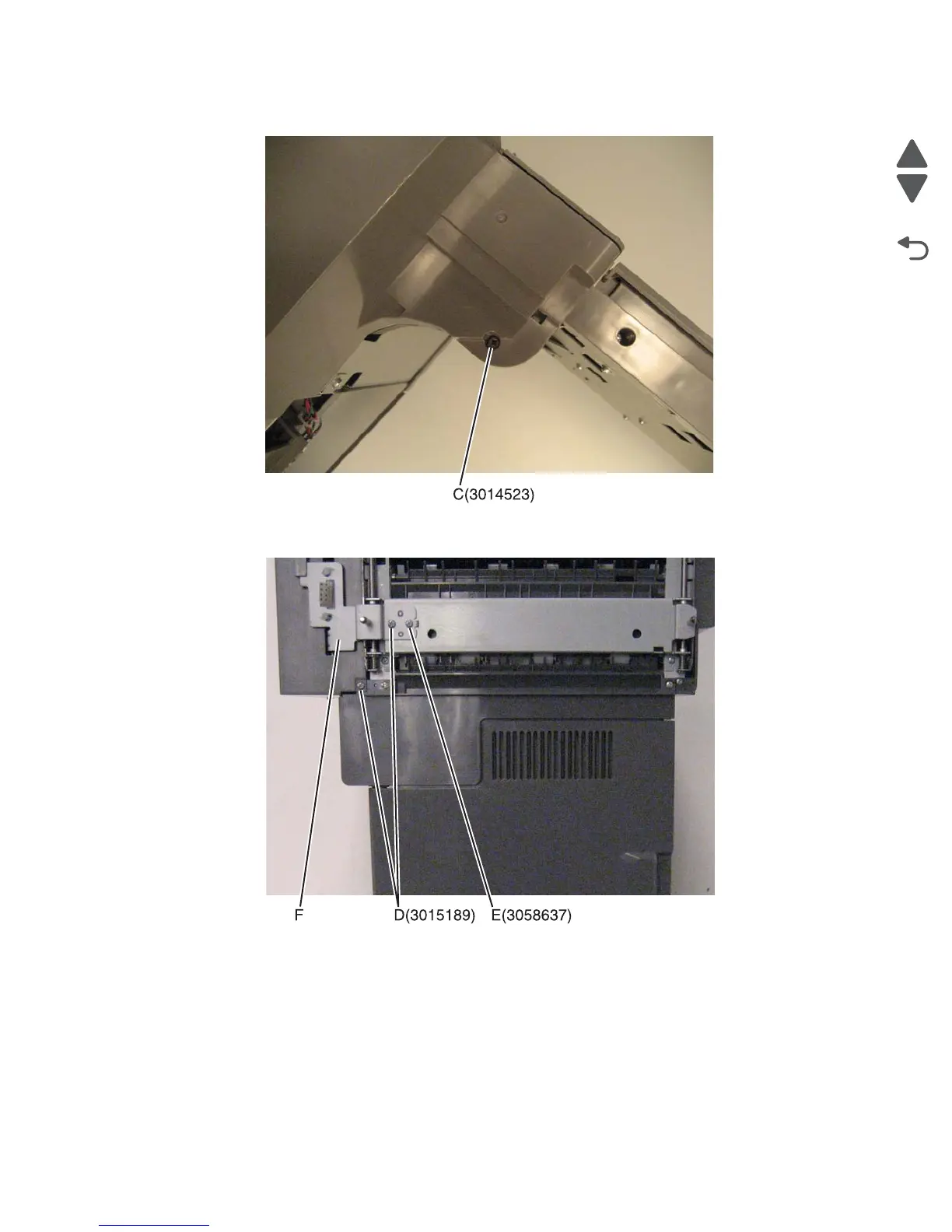

4. Remove the screw (C) from the left side.

5. Remove two screws (D) and one screw (E) from the top.

6. LIft off the output option connector bracket (F), and then lift off the rear standard bin cover.
