5-bin mailbox sensor (input) assembly removal
1. Remove the 5-bin mailbox option from the printer.
2. Remove the bottom mailbox output bin roller. See “5-bin mailbox output bin roller removal” on
page 4-248.

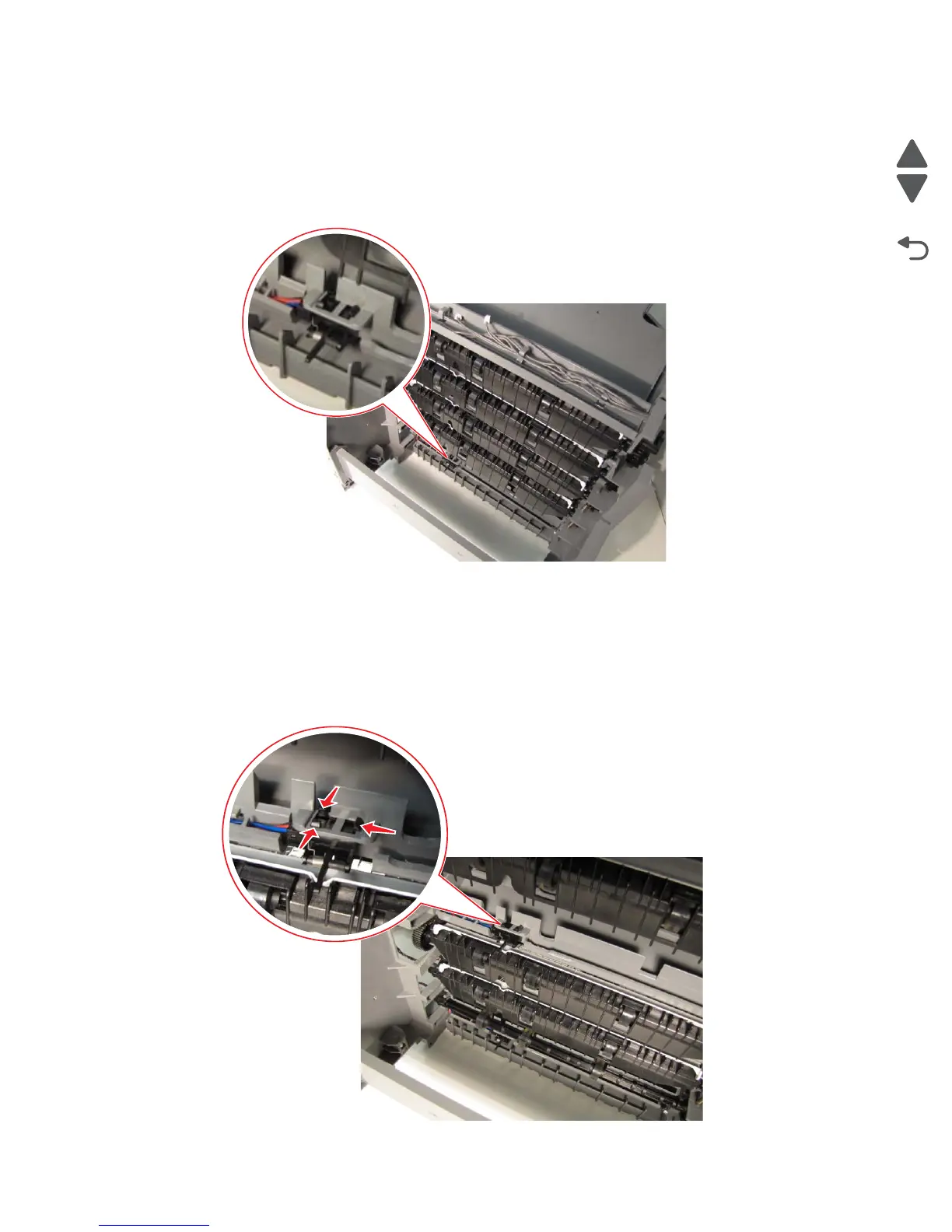

3. Release the tabs holding the sensor, and then remove the sensor with its cable.
5-bin mailbox sensor (pass thru) assembly removal
See“5-bin mailbox assembly (interior)” on page 7-37 for the part number.
1. Remove the 5-bin mailbox option from the printer.
2. Remove the 4th mailbox output bin roller.
3. Release the tabs holding the sensor, and then remove the sensor with its cable.
