Lexmark C792 series

To Next Page

To Previous Page

4-296 Service Manual

5062

Go Back

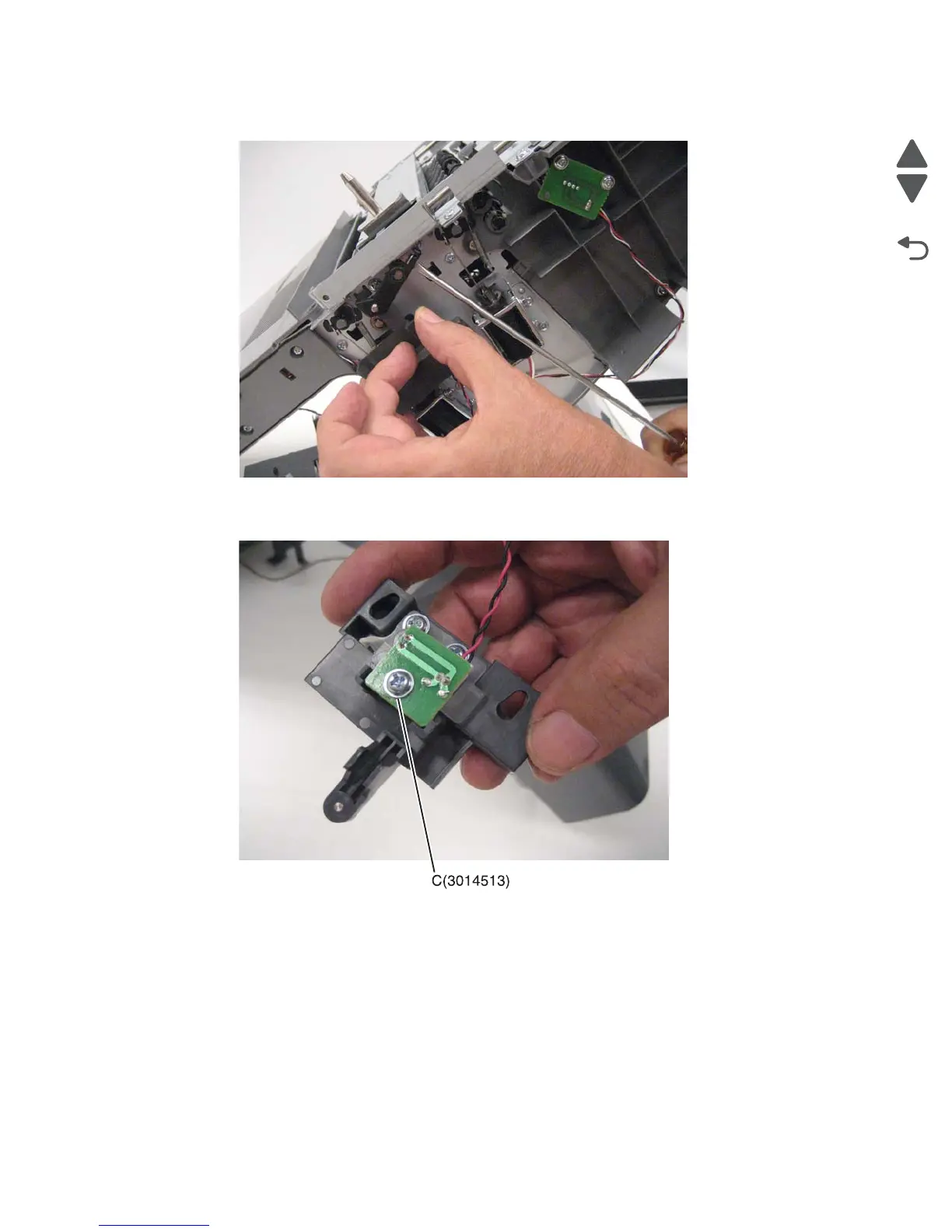

3. Use a flat-blade screwdriver to slide the lever out.

4. Remove the screw (C).
