Lexmark C792 series

To Next Page

To Previous Page

Repair information 4-205

5062

Go Back

5. Remove the left side cover by slightly lifting it.

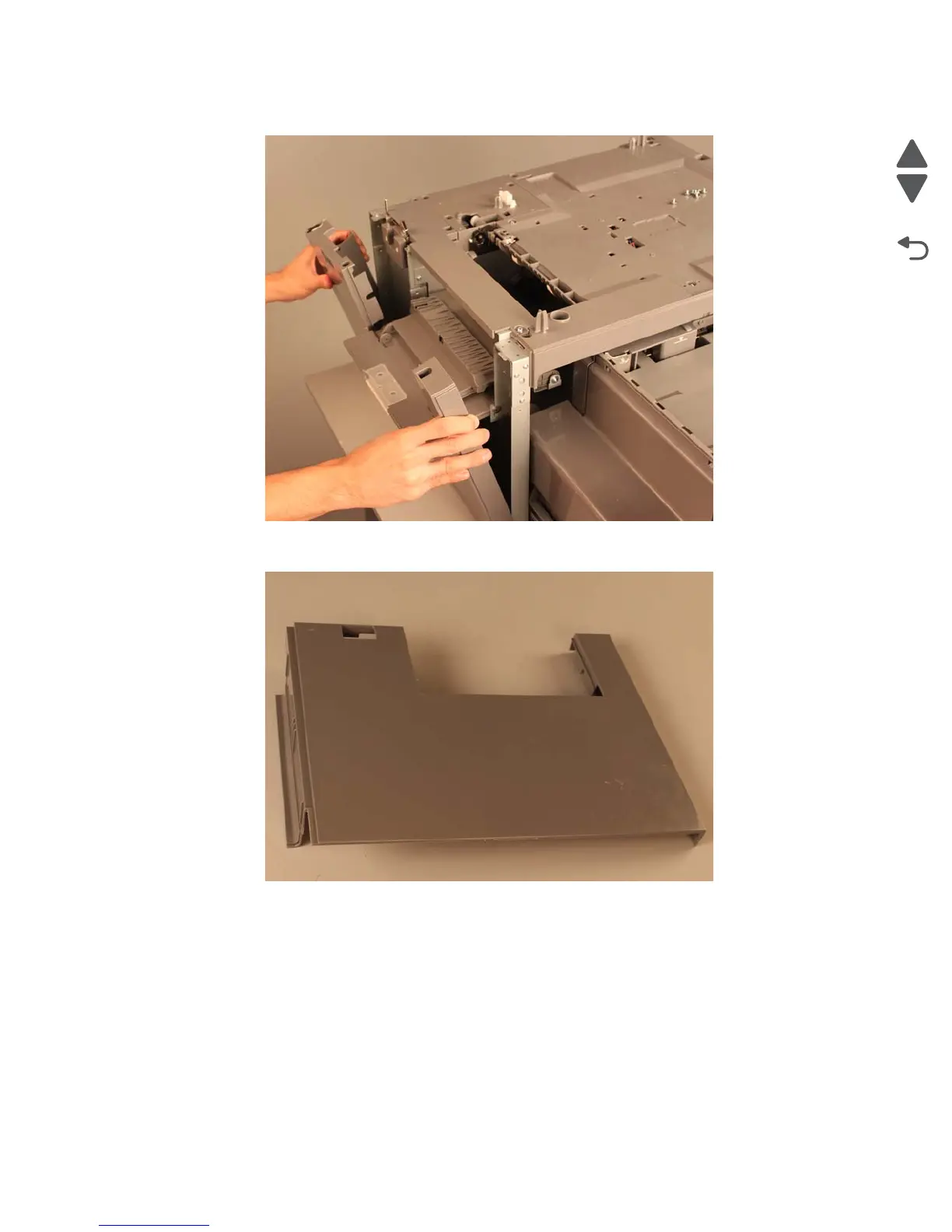

This is the photo of the 2000-sheet high-capacity feeder left side cover.
