Repair information 4-243

5062

Go Back

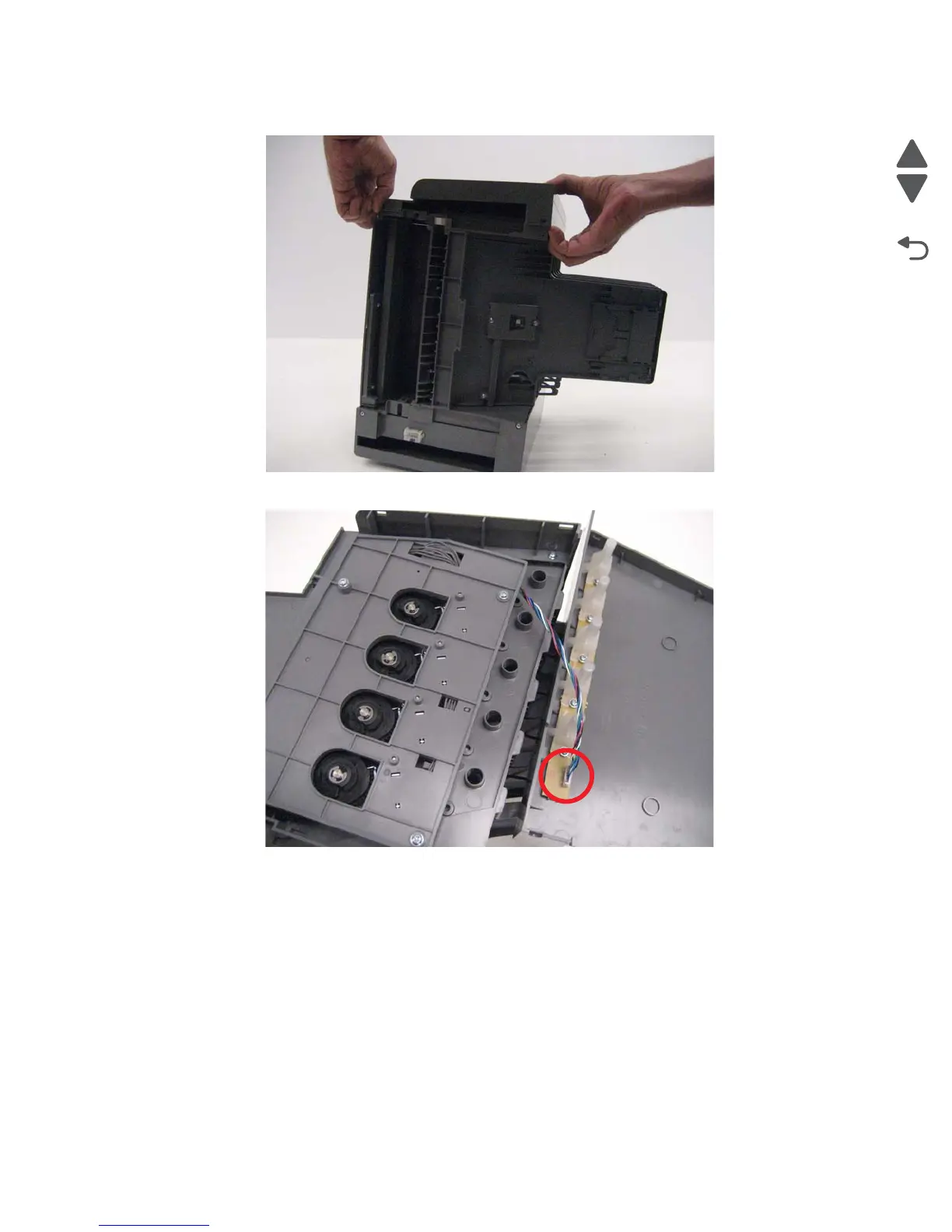

4. Pull out on the right side to disengage the tabs, and then remove the cover.

5. Disconnect the cable from the beacon card.

Note: If you are replacing the cover FRU, then remove the bin-full beacon card. See “5-bin mailbox bin-full

beacon card and light pipe removal” on page 4-237.
