Lexmark C792 series

To Next Page

To Previous Page

Repair information 4-261

5062

Go Back

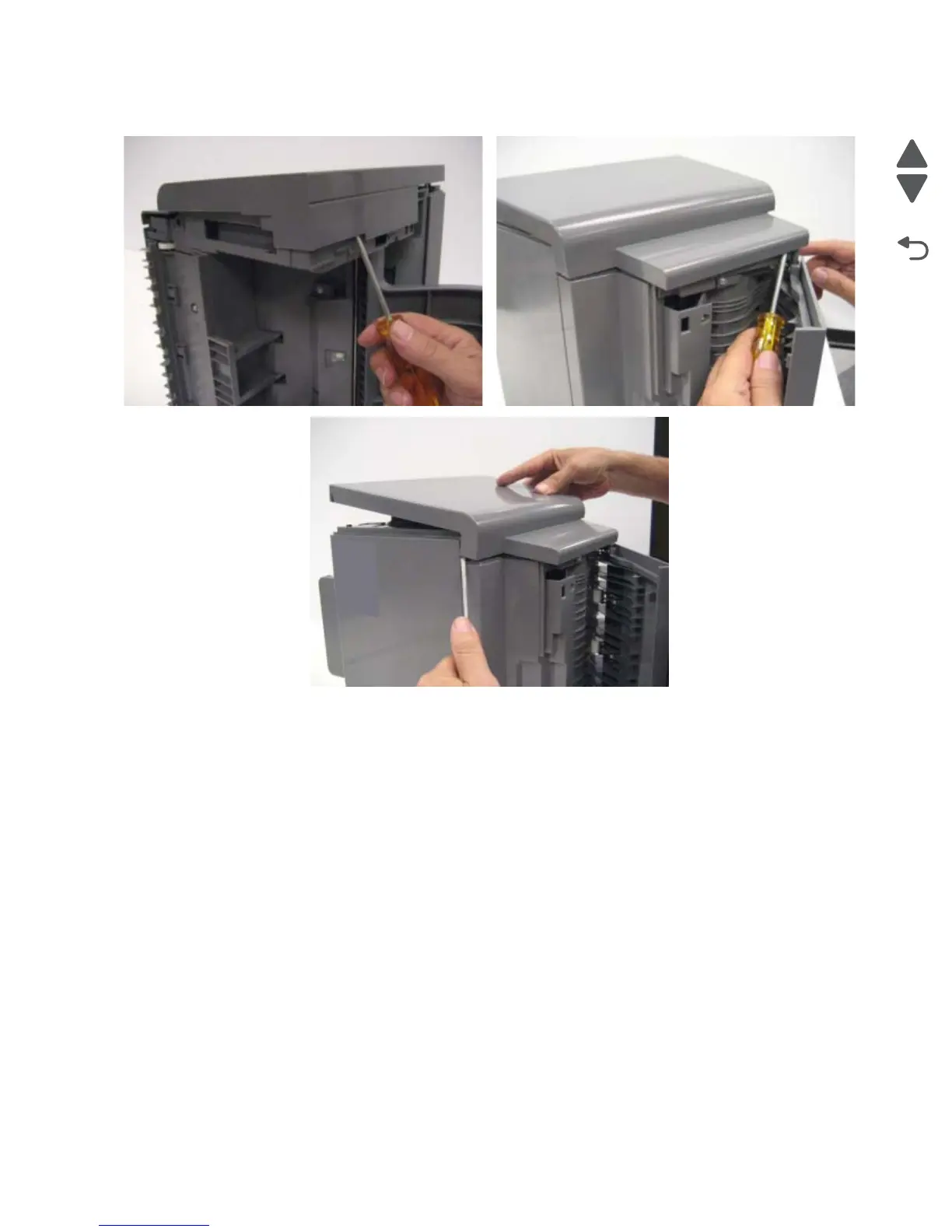

3. Using a flat-blade screwdriver, pry up to disengage the tabs on the right, left, and top sides of the cover.

4. Remove the left cover.
