Lexmark C792 series

To Next Page

To Previous Page

Repair information 4-181

5062

Go Back

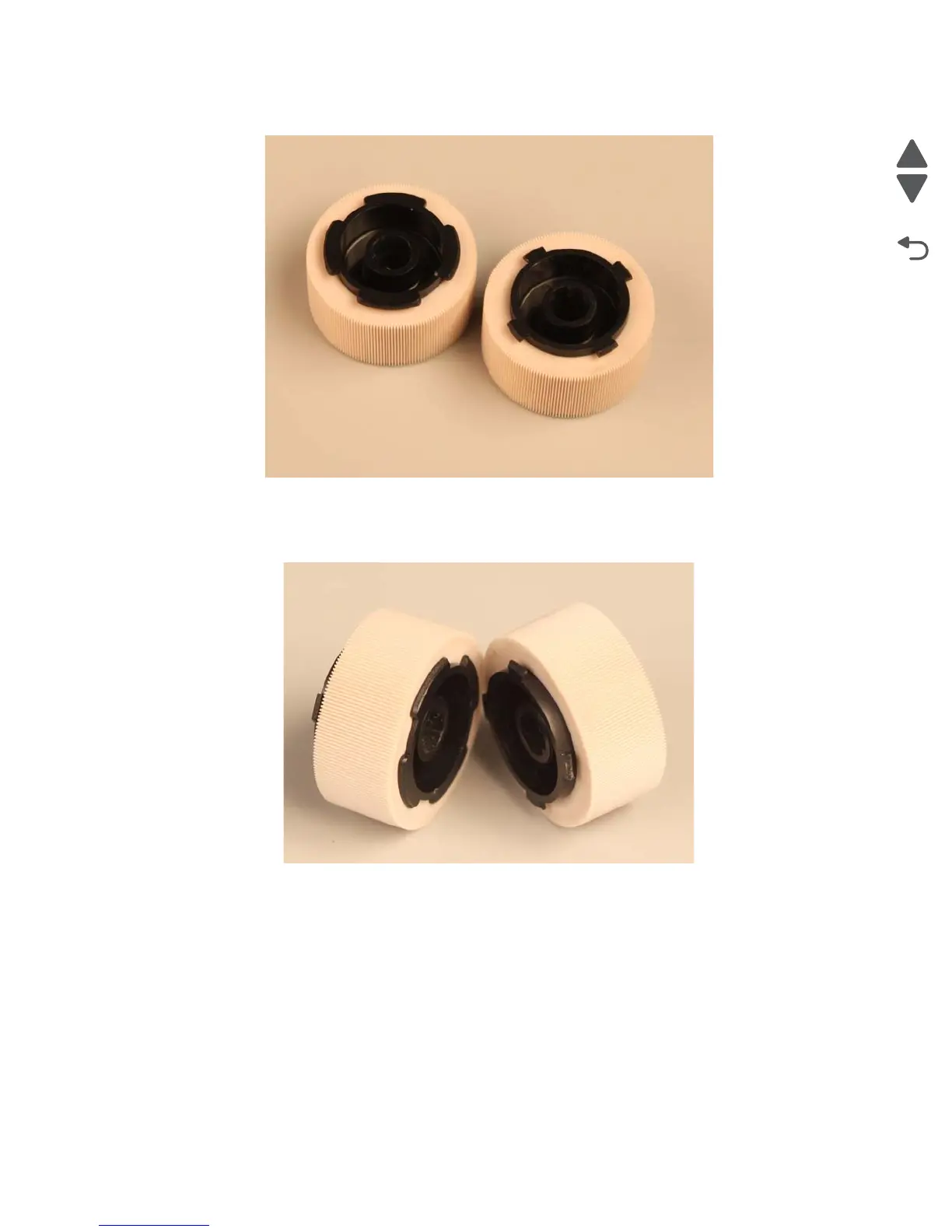

This is the photo of the pick roll assembly.

Installation note:

Before installing the pick tire, be sure that the pick tire is fully aligned against one end of the hub.
