2-116 Service Manual
5062
5
Remove the input tray.
Is the input tray cable connected
correctly?
Go to step 6. Reseat the cable.
6
Remove the LVPS. See “Low-voltage
power supply (LVPS) removal” on
page 4-86.

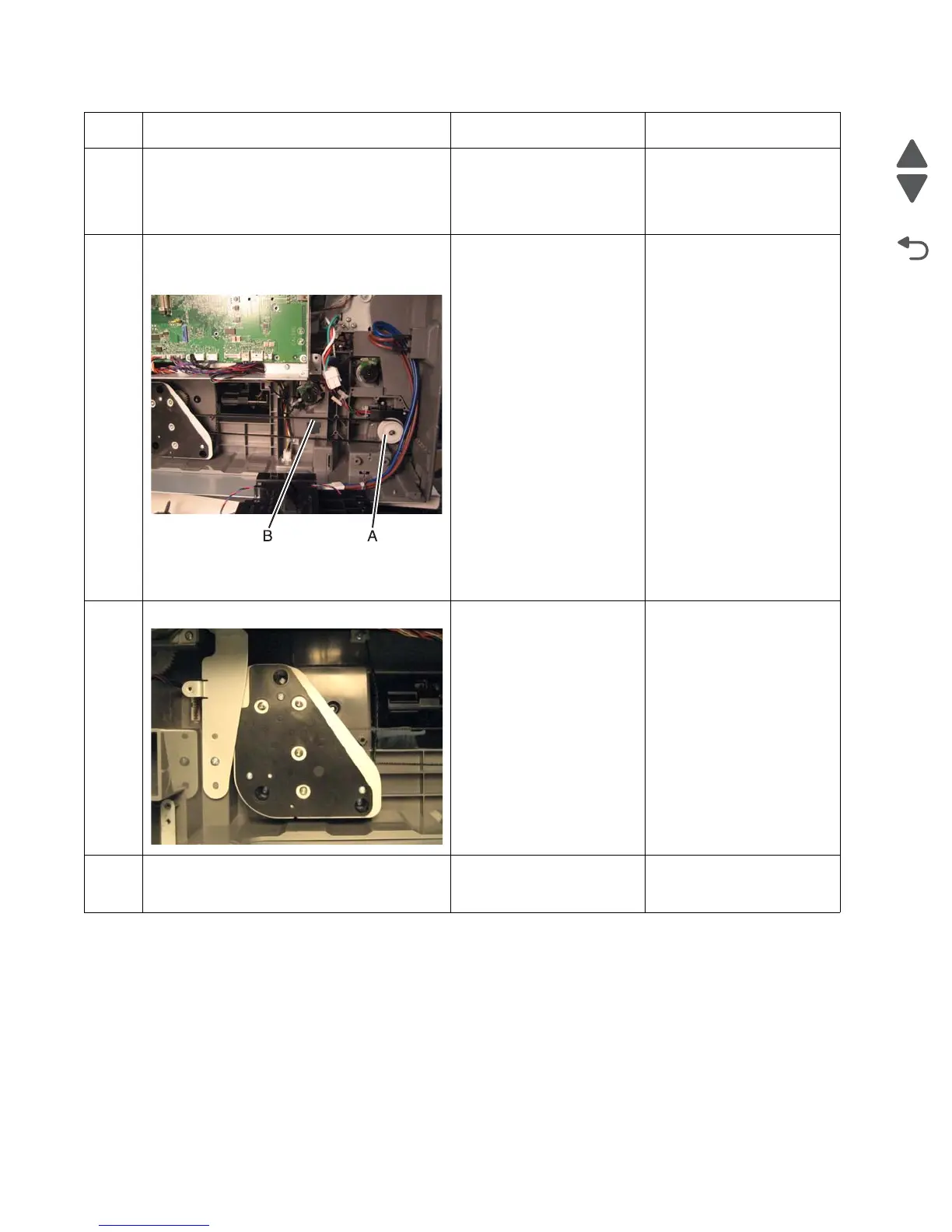

Is the MPF drive belt (B) broken?
Replace the MPF drive
belt. See “MPF drive
assembly removal” on
page 4-106.
Go to step 7.
7
Is the MPF drive assembly damaged? Replace the MPF drive
assembly. See “MPF drive
assembly removal” on
page 4-106.
Go to step 8.
8
Replace the Input tray feed assembly.
Does the error reoccur?
Replace the system board.
See “System board
removal” on page 4-151.
Problem solved.
Step Questions / actions Yes No
