Remove the staging deflector assembly, and
check the sensor cable connection. See
“Staging deflector assembly removal” on
page 4-140.

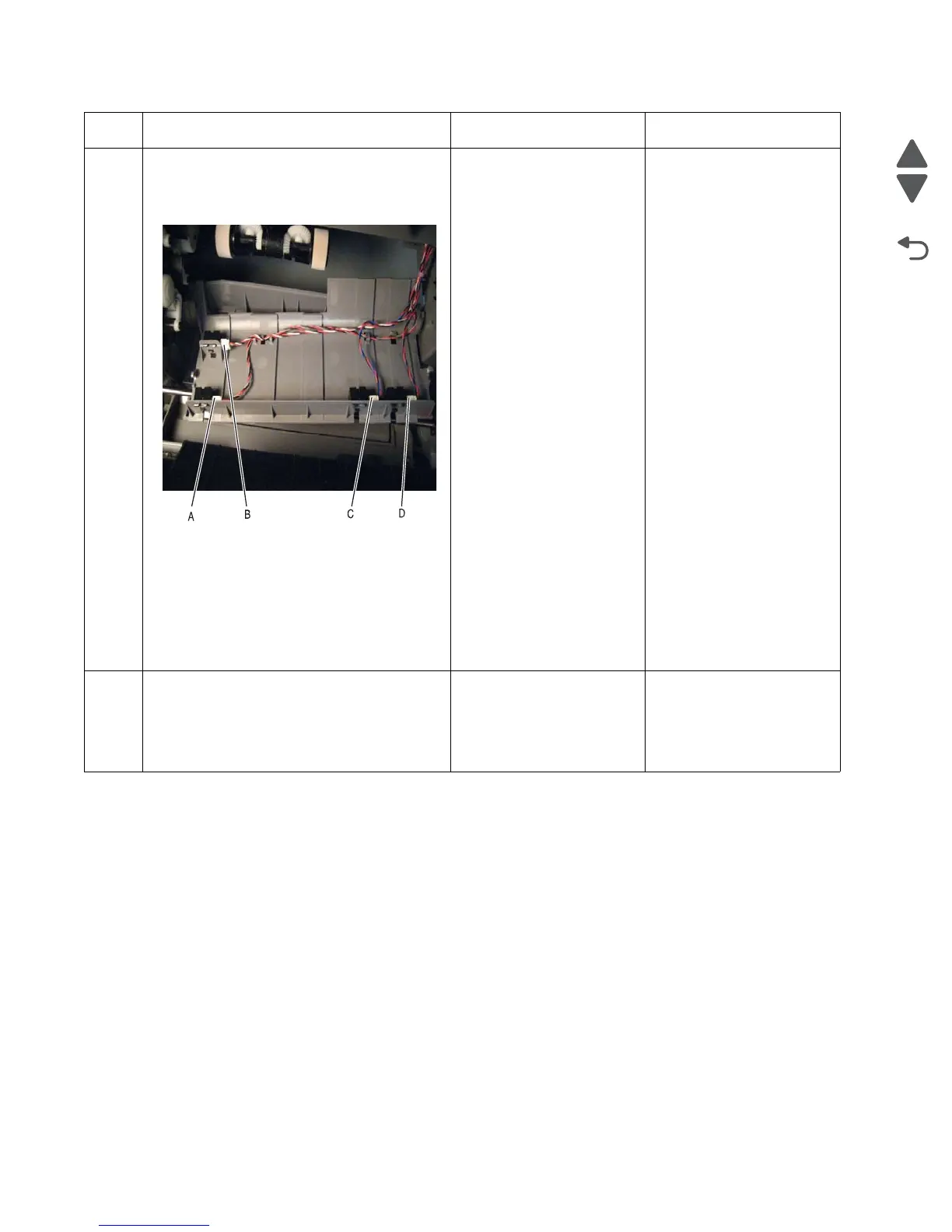

A—Input sensor
B—S1 sensor
C—Narrow media sensor
D—Near narrow media sensor
Is the cable properly connected?
Go to step 5. Reseat the cable.
5
Replace the sensor. “Sensor (input, S1,
narrow media, near narrow media)
removal” on page 4-138
Does the error reoccur?
Replace the system board.
See “System board
removal” on page 4-151.
Problem solved.
