Diagnostic information 2-161
5062
4

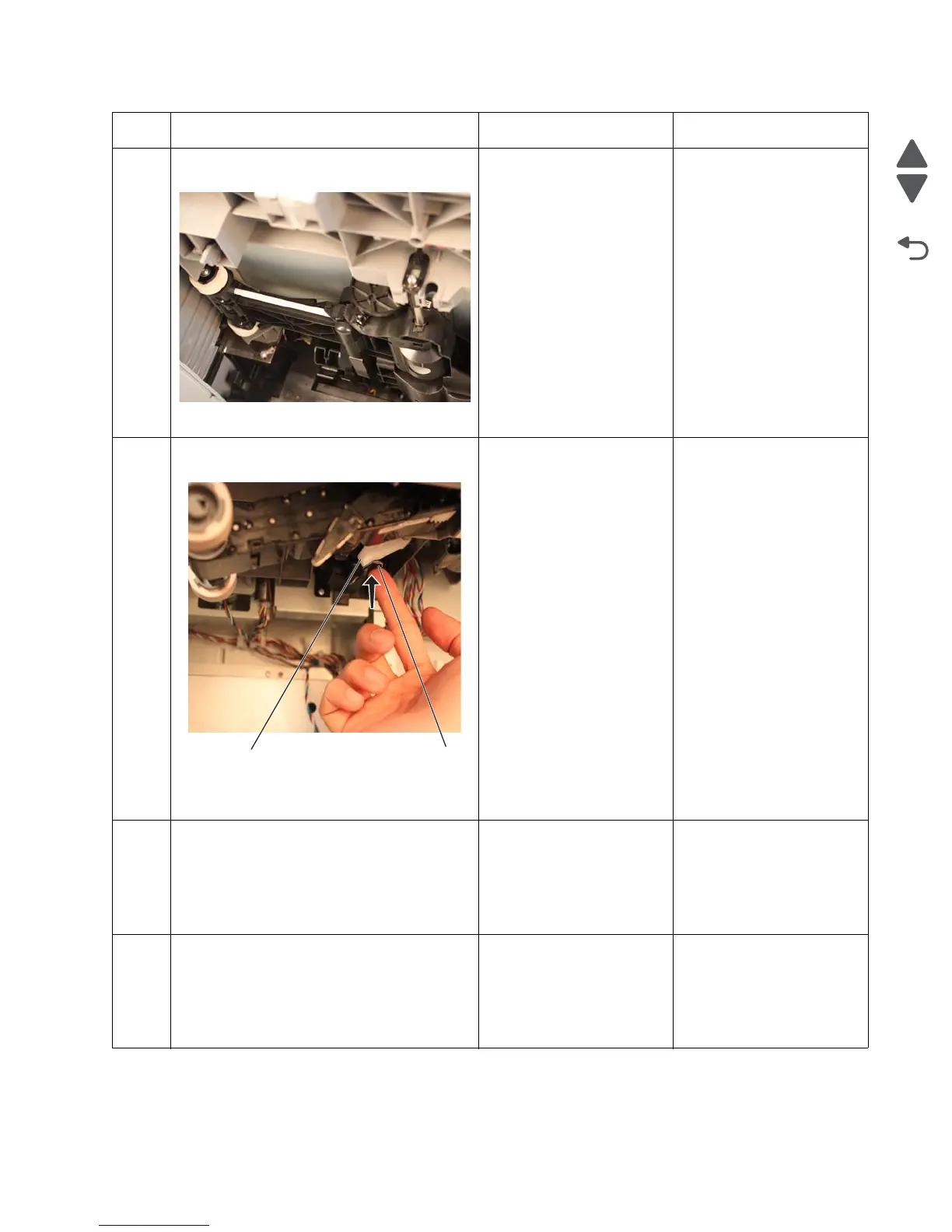

Check if the pick arm assembly is not hanging
down.
Is the pick arm hanging?
Go to step 5. Go to step 6.
5
Press the actuator assembly (B) to lock the
pick arm on its default position.
Does the problem persists?
Go to step 6. Problem solved.
6
Check the 2000-sheet high-capacity feeder
bellcrank assembly if the recoil spring is
loose.
Is the recoil spring fastened on the
bellcrank?
Go to step 7. Reinstall the recoil spring.
7
Check the tray slide assembly for damage.
Does the tray slide assembly retracts?
Replace the 2000-sheet
high-capacity feeder media
tray assembly. See “2000-
sheet high-capacity
feeder media tray
assembly removal” on
page 4-215.
Replace the 2000-sheet
high-capacity feeder
drawer assembly.
Step Questions / actions Yes No
