2-168 Service Manual
5062
5

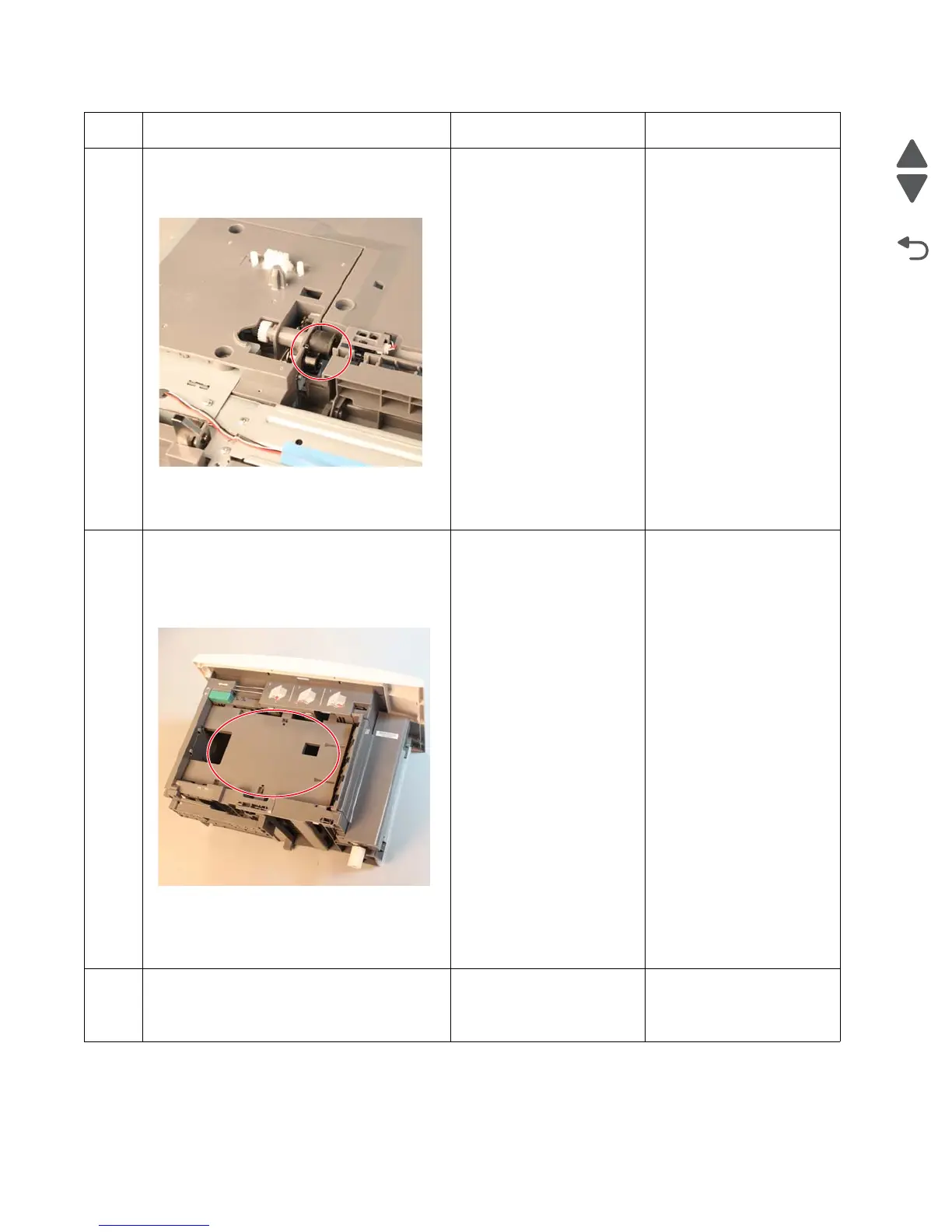

Check if there’s a contact between the rollers
of the 2000-sheet high-capacity feeder drive
assembly and if the jam clearance cover is
properly closed.
Is there a contact between the rollers?
Go to step 6. Replace the 2000-sheet
high-capacity feeder drive
assembly. See “2000-
sheet high-capacity
feeder drive assembly
removal” on page 4-186.
6
1. Remove the 2000-sheet high-capacity
feeder media tray assembly from the
drawer.
2. Check the media tray for damage.
3. Check if the elevator plate is level.
4. Check the lift drive gears for damage.
Is the media tray assembly damaged?
Replace the 2000-sheet
high-capacity feeder media
tray assembly. See “2000-
sheet high-capacity
feeder media tray
assembly removal” on
page 4-215.
Go to step 7.
7
Check the bellcrank of the machine.
Is the bellcrank dislodged?
Properly install the
bellcrank.
Replace the 2000-sheet
high-capacity feeder input
option.
Step Questions / actions Yes No
To Next Page
