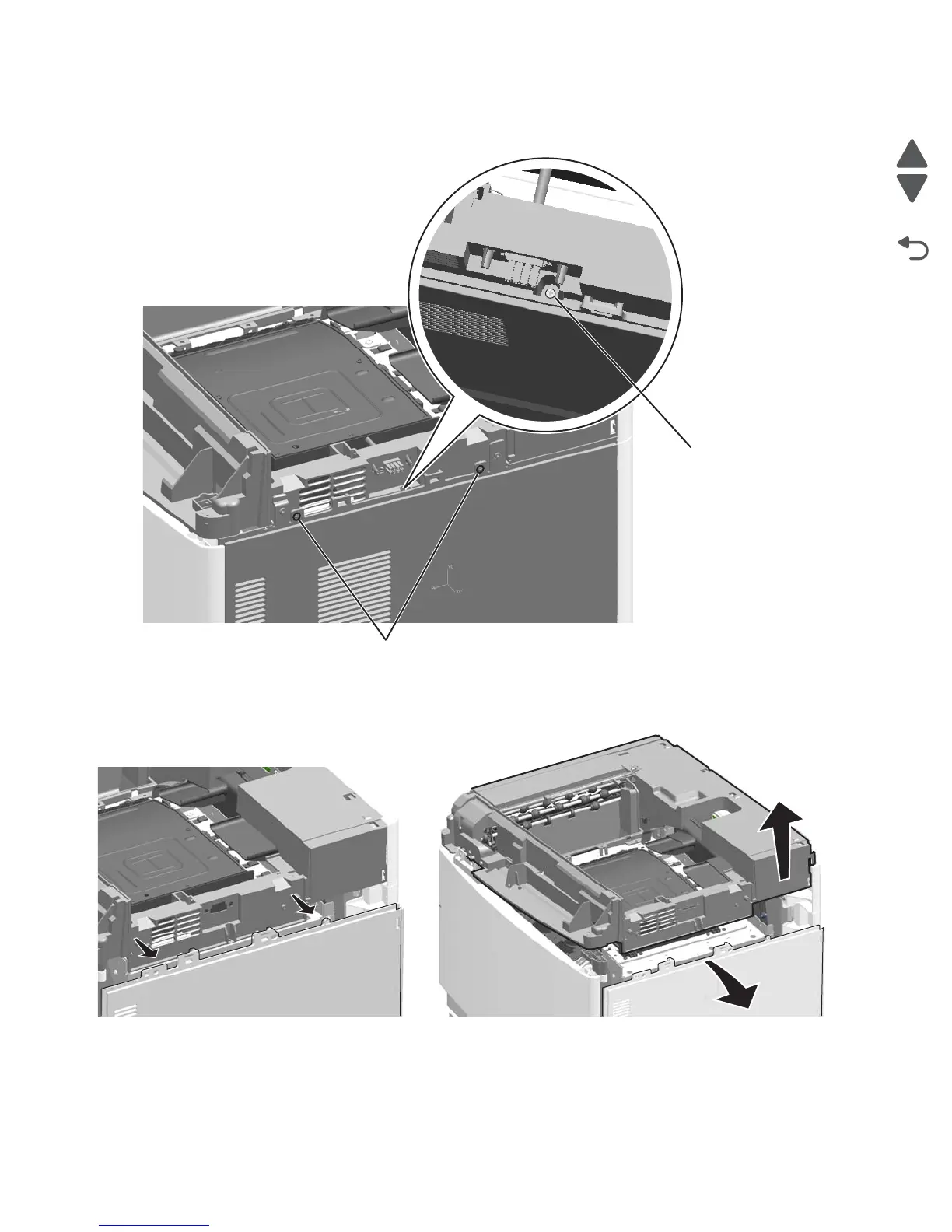

8. On the right side, remove two screws (E) and one screw (F).

9. Pull the tabs away from the pins, and lift the top cover.

E (88A0323)

F (88A0212)
