Lexmark C792 series

To Next Page

To Previous Page

4-40 Service Manual

5062

Go Back

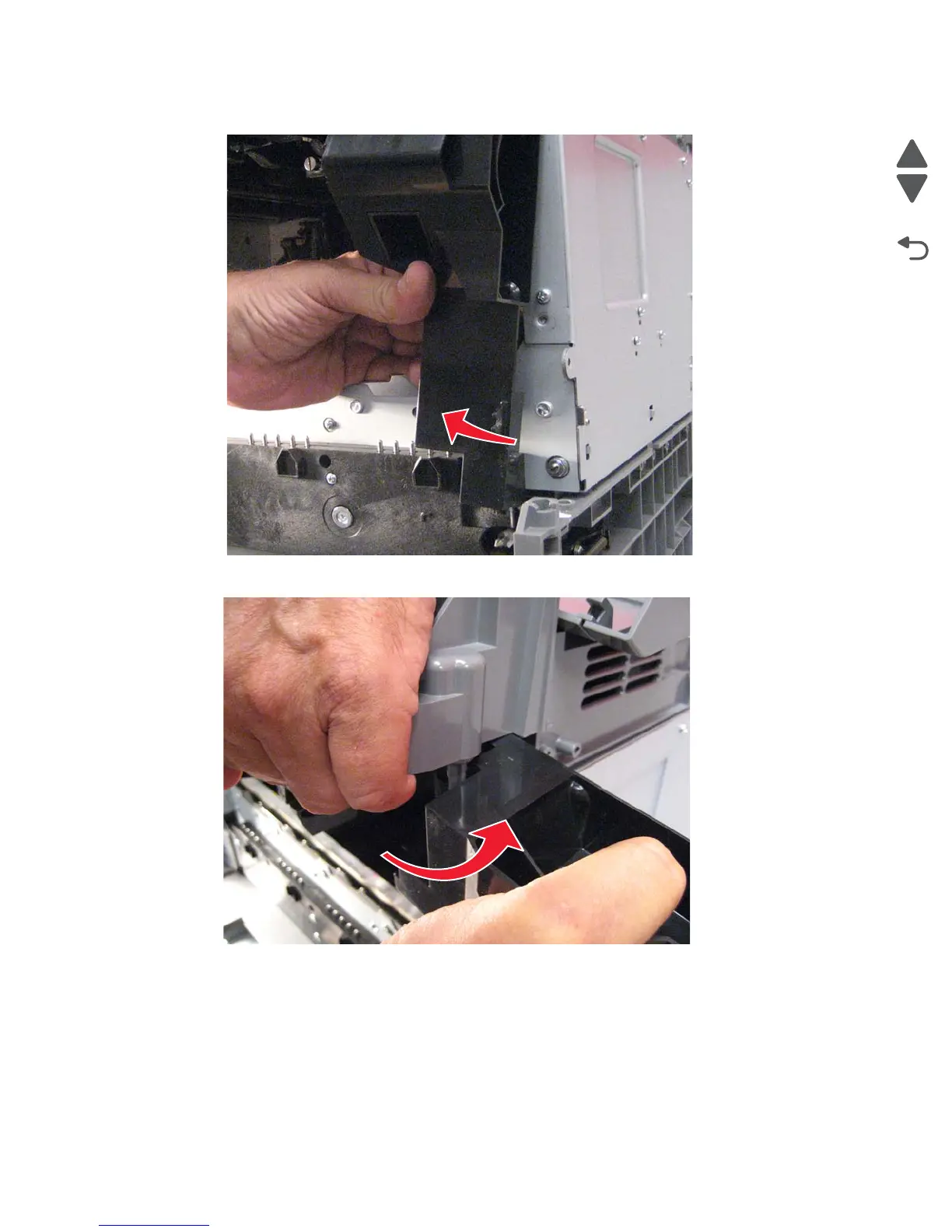

4. Lift the blower assembly slightly up and to the left to free the bottom.

5. Flex the top cover up, and rotate the blower assembly to the right to free the hook at the top.
