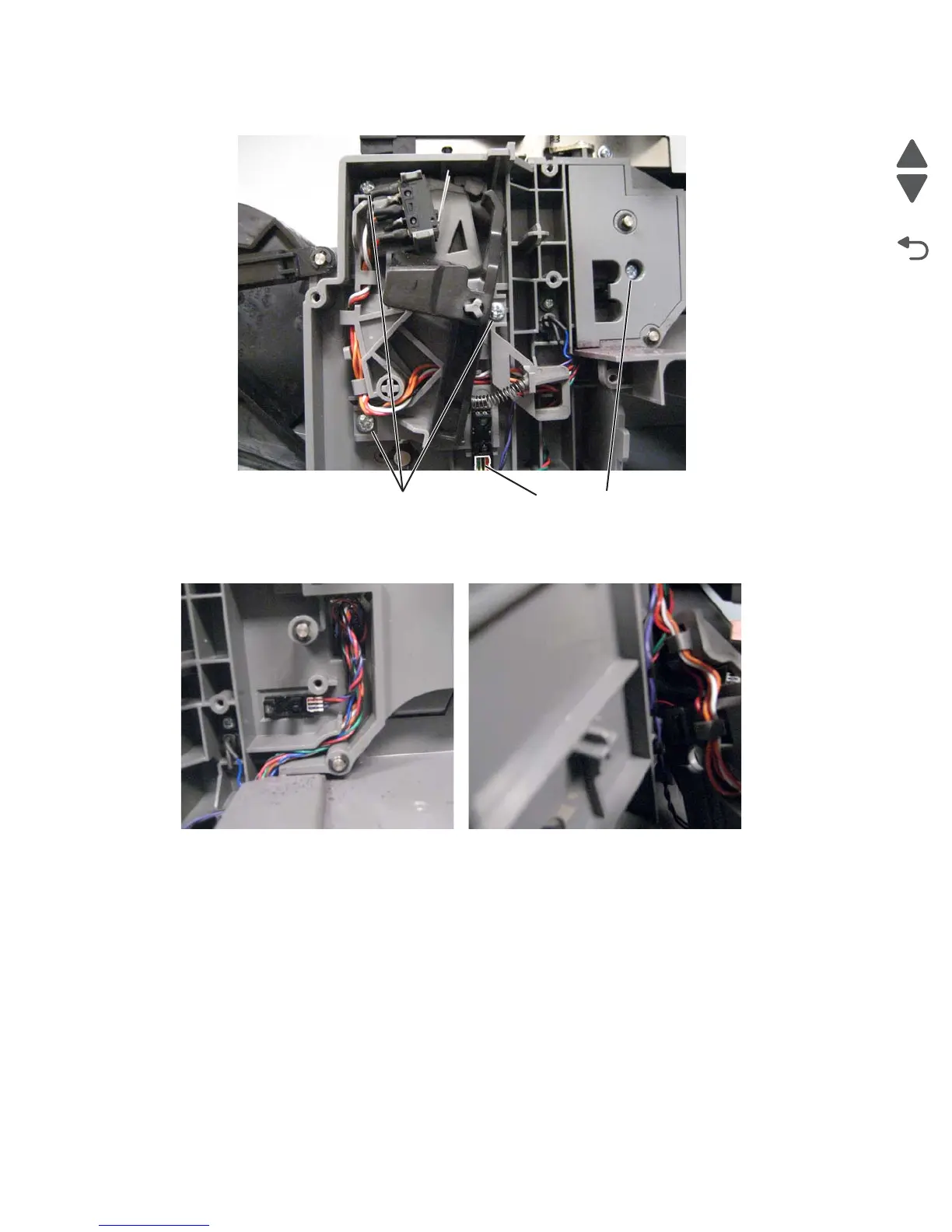

5. Disconnect the cable (B) from the sensor, and remove three screws (C).

6. Disconnect the cable from the system board (JCVR1).

7. Route the cable through the printer to remove the assembly. Clip and remove cable ties as needed.

Note: Observe the cable routing for reinstallation.

C (88A0323)

B A (88A0323)
