Lexmark C792 series

To Next Page

To Previous Page

4-124 Service Manual

5062

Go Back

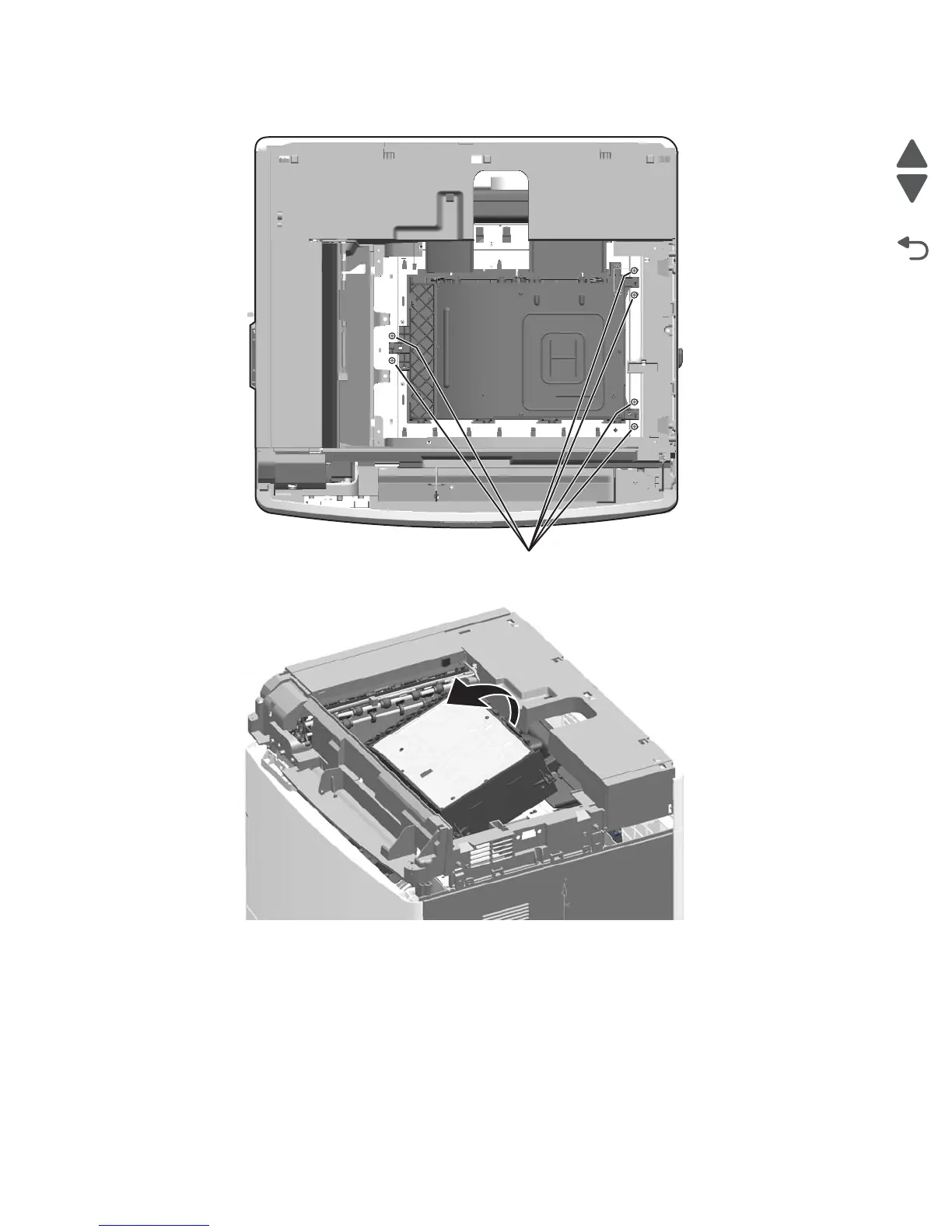

4. Remove the six screws (B) from the brackets, and remove the brackets.

5. Tilt the printhead forward, and lift to remove it.

B (10J3568)
