12. From the Yellow menu, navigate to:
Linearity > Quick Test

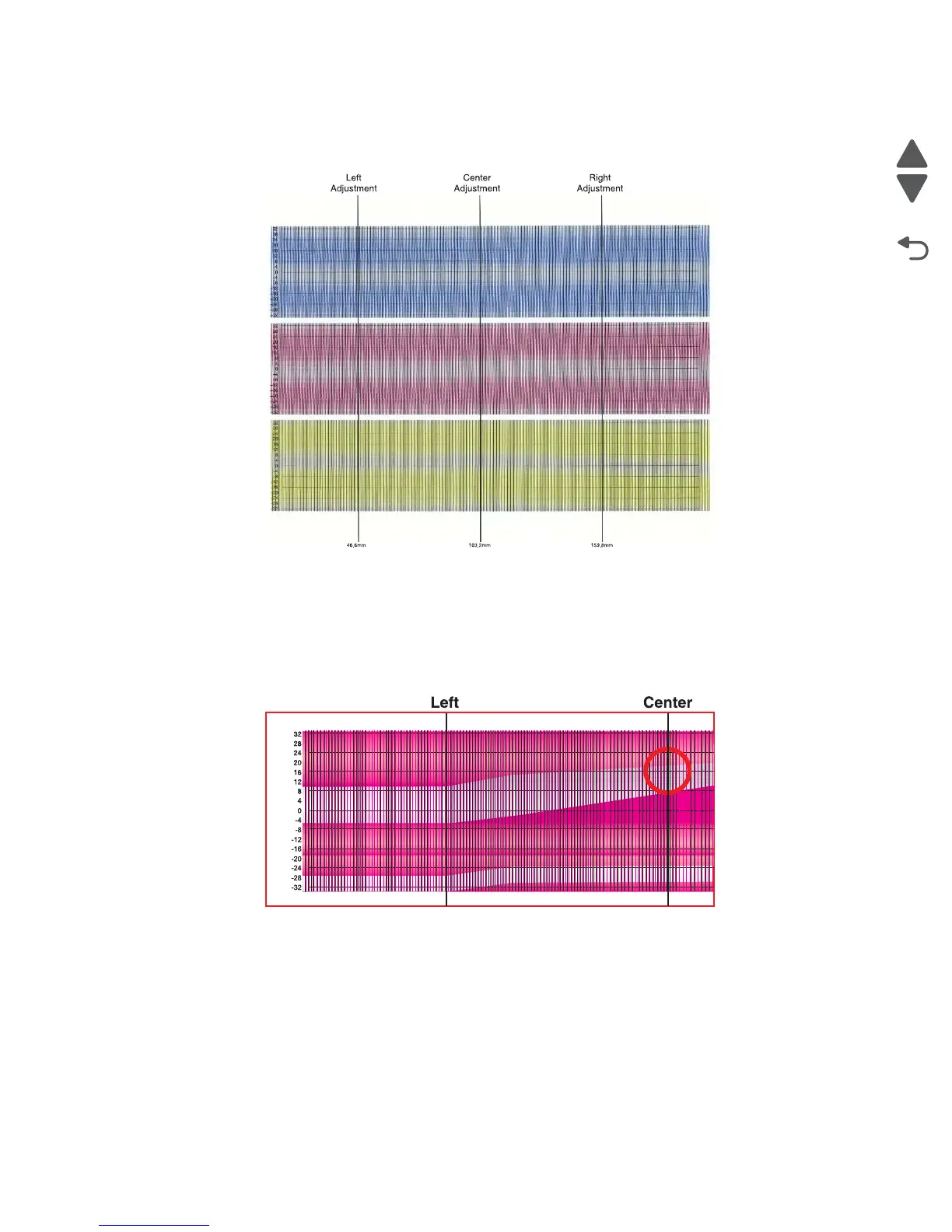

A test page similar to the following prints:
If the Linearity alignment is correct, the gray stripe near the center of each color on the test page should be
within the 12 to -12 range.
13. If the gray stripe extends above 12 or below -12 where it crosses the Left, Center, or Right line, then adjust
the Left Adjustment, Center Adjustment, or Right Adjustment for that color. Enter the number closest to
where the gray stripe crosses the line.
Example: The gray stripe on the following test page extends up to around 16 near the Center line. From
the Yellow Linearity menu, enter 16 for the Center Adjustment value to move the gray stripe back toward 0.
14. Repeat the color alignment process for Cyan and Magenta.

Lexmark C792 series Specifications

General

Print Technology	Color Laser
Print Speed (Letter, Black)	50 ppm
Print Speed (Letter, Color)	50 ppm
Processor Speed	1.2 GHz
Monthly Duty Cycle	150, 000 pages
Maximum Paper Size	8.5 x 14 inches (Legal)
Operating System Compatibility	Windows, Mac OS, Linux
Print Resolution	1200 x 1200 dpi
Duplex Printing	Standard
Connectivity	USB, Ethernet
Media Sizes Supported	A4, A5, Letter, Legal, Executive, Folio, JIS B5
Media Types Supported	Card Stock, Envelopes, Labels, Plain Paper, Transparencies
Input Capacity (Standard)	650 sheets
Output Capacity (Standard)	500 sheets
