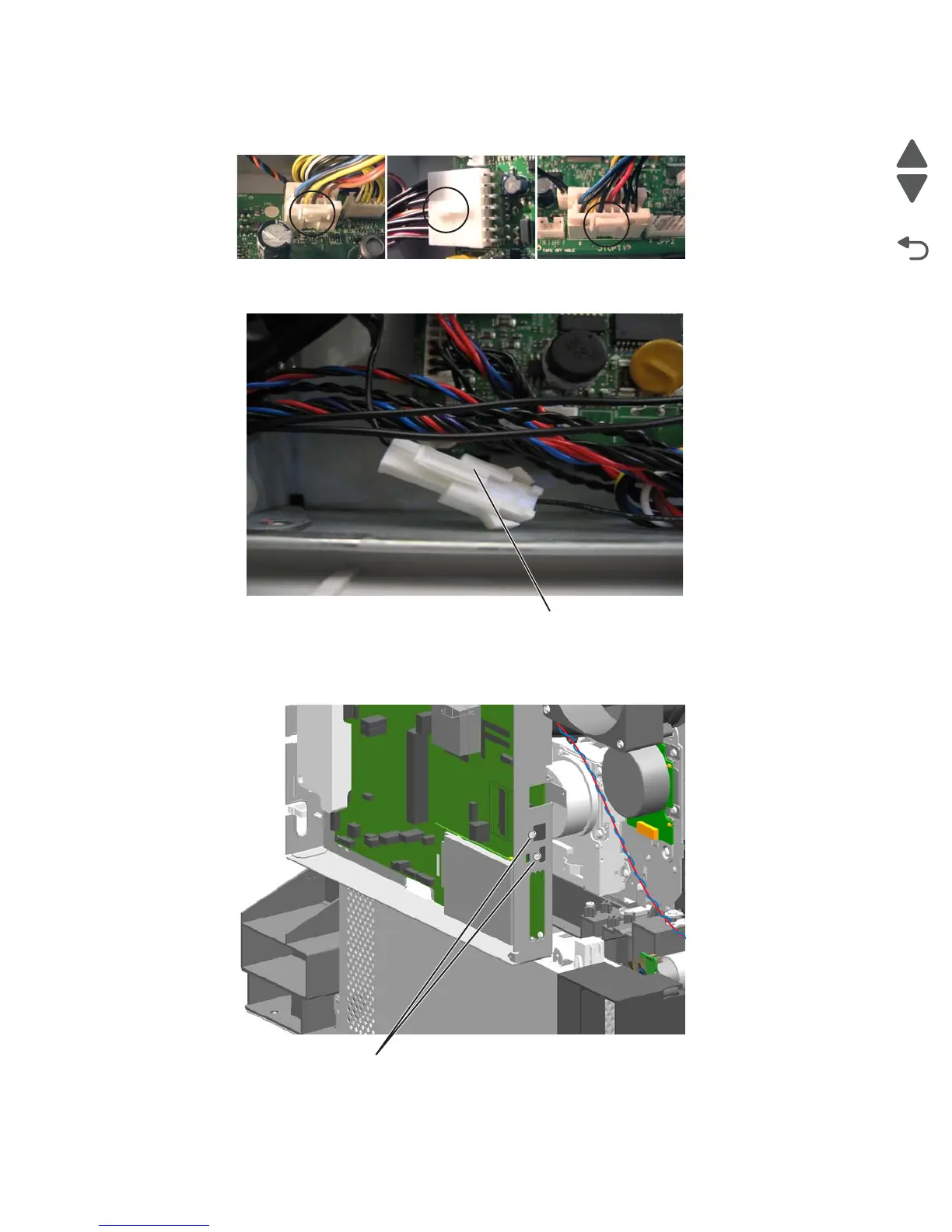

4. Disconnect all cables from the system board.
Note: Some cables have special connectors that require you to press in tabs to disconnect the cables.
Note: The cables may or may not include a pigtail connector (B).
5. Remove any options from the system board. Be sure to replace them during reinstallation.
6. Remove the screws (C) from the ports.
B
C (88A0232)
