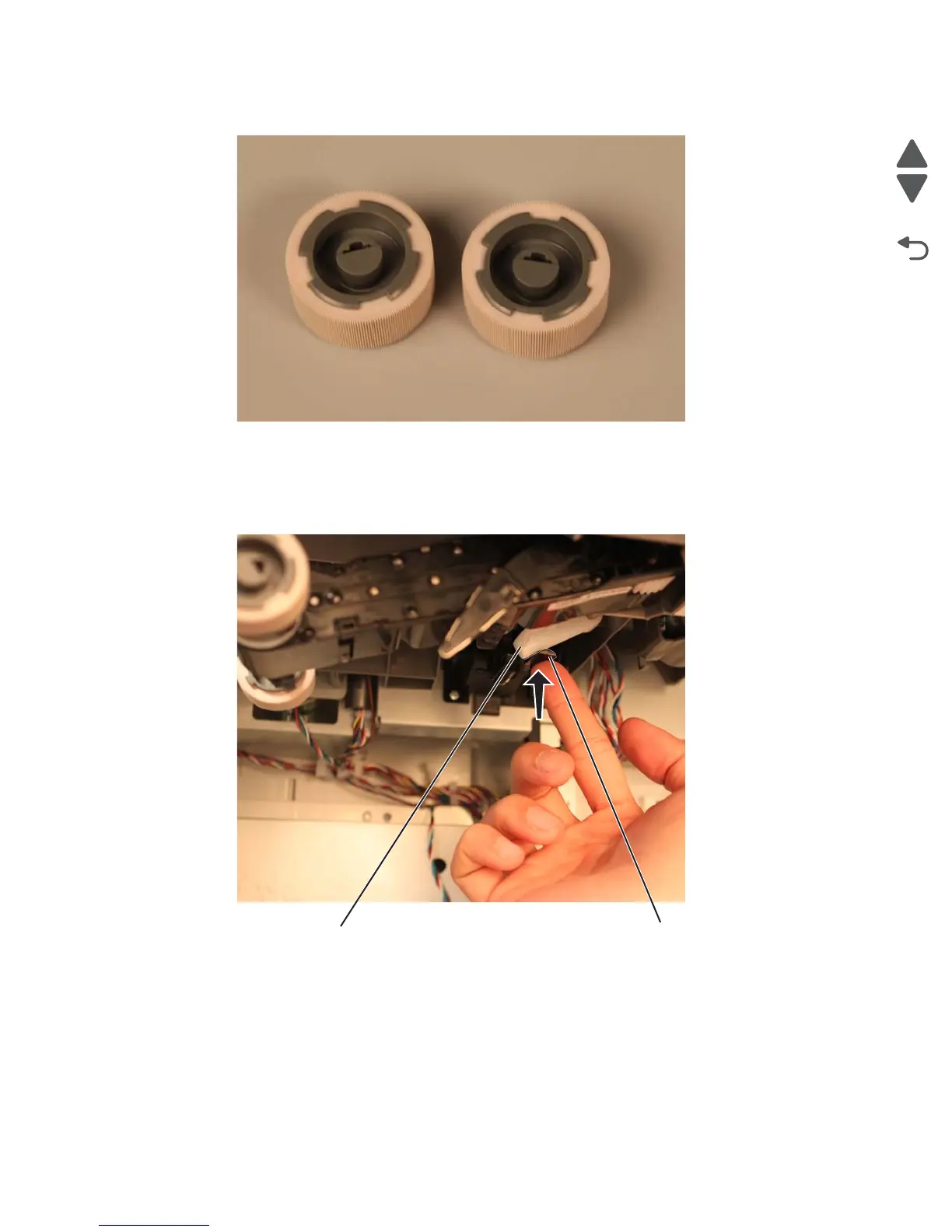

This is the photo of the 2000-sheet high-capacity feeder pick roll assembly.

Installation note:

Be sure that the pick arm lever (A) is on top of the actuator lever (B).

If the pick arm is hanging, press the actuator lever as shown in the picture.

A B
