Lexmark C792 series

To Next Page

To Previous Page

4-270 Service Manual

5062

Go Back

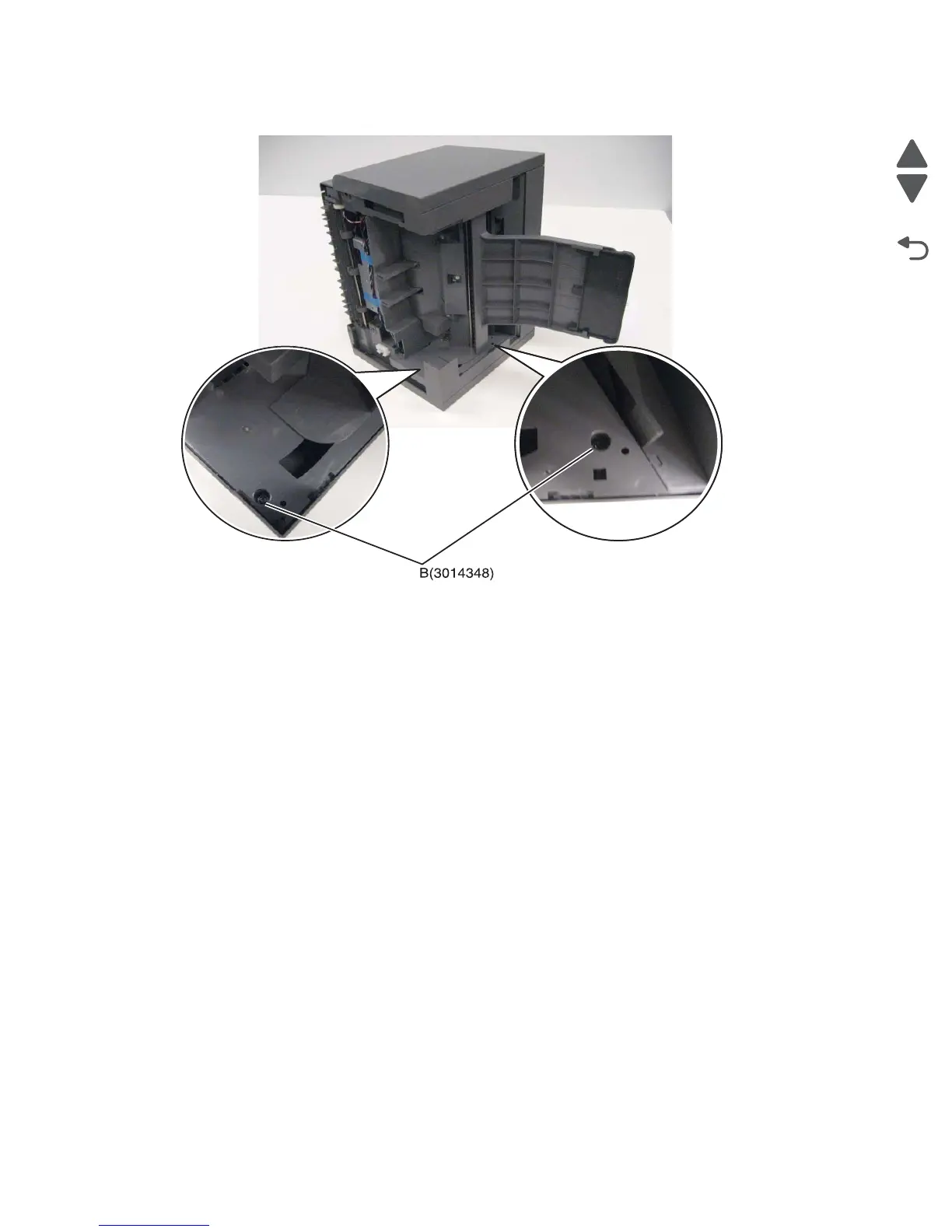

4. Remove the two screws (B) on the inside of the exit bin compartment.

5. Pull out on the right side of the cover to disengage the tabs, and remove the cover.
