HP Latex 300 Series Service Manual

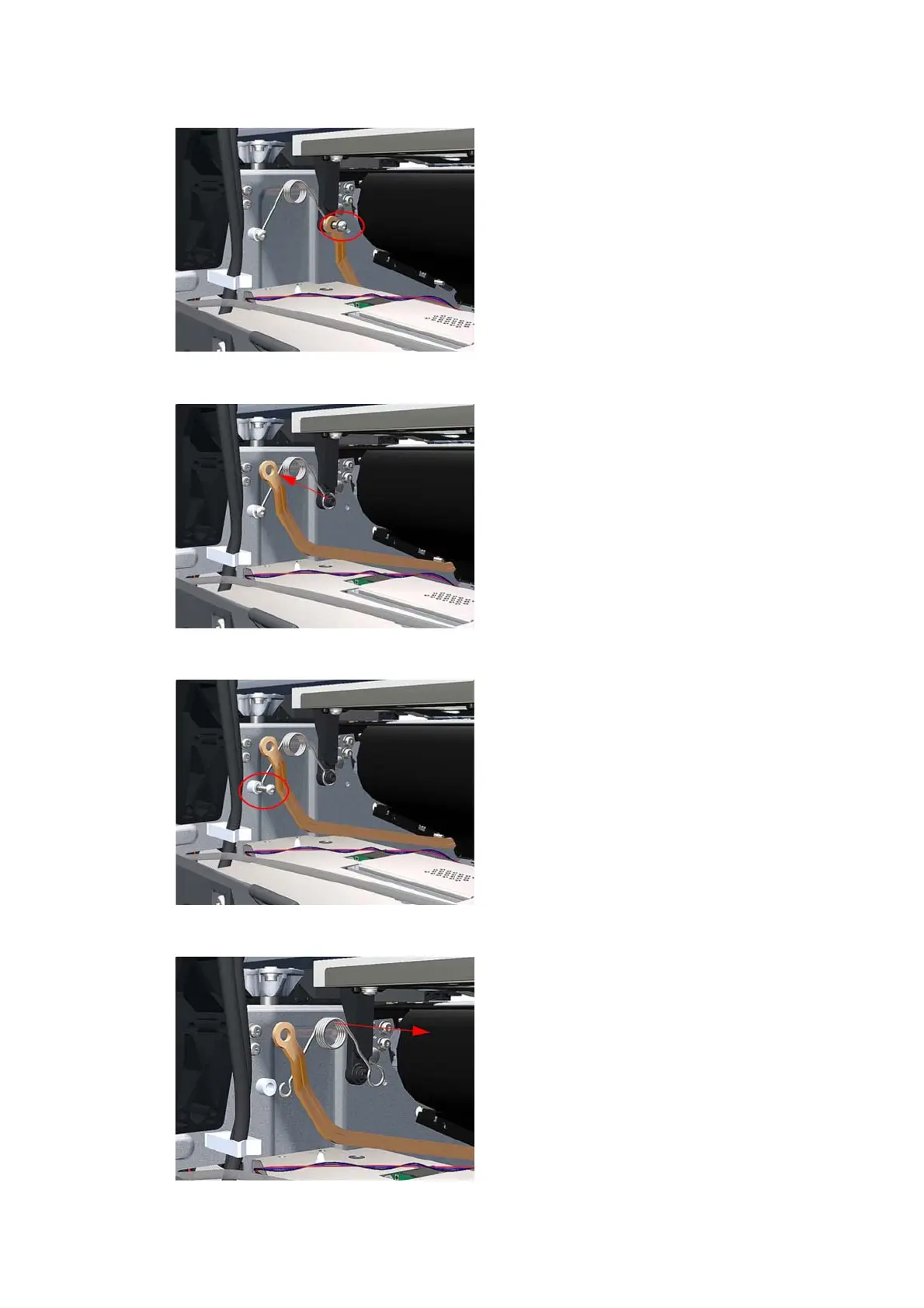

4. Remove one T-15 screw (Type F) that secures the Linkage to the Spring.
5. Remove the Linkage from the Spring.
6. Remove one T-20 screw (Type A) that secures the Spring to the Spacer.
7. Remove the Spring and plastic washer.
388 Chapter 8 Removal and installation ENWW
