HP Latex 300 Series Service Manual

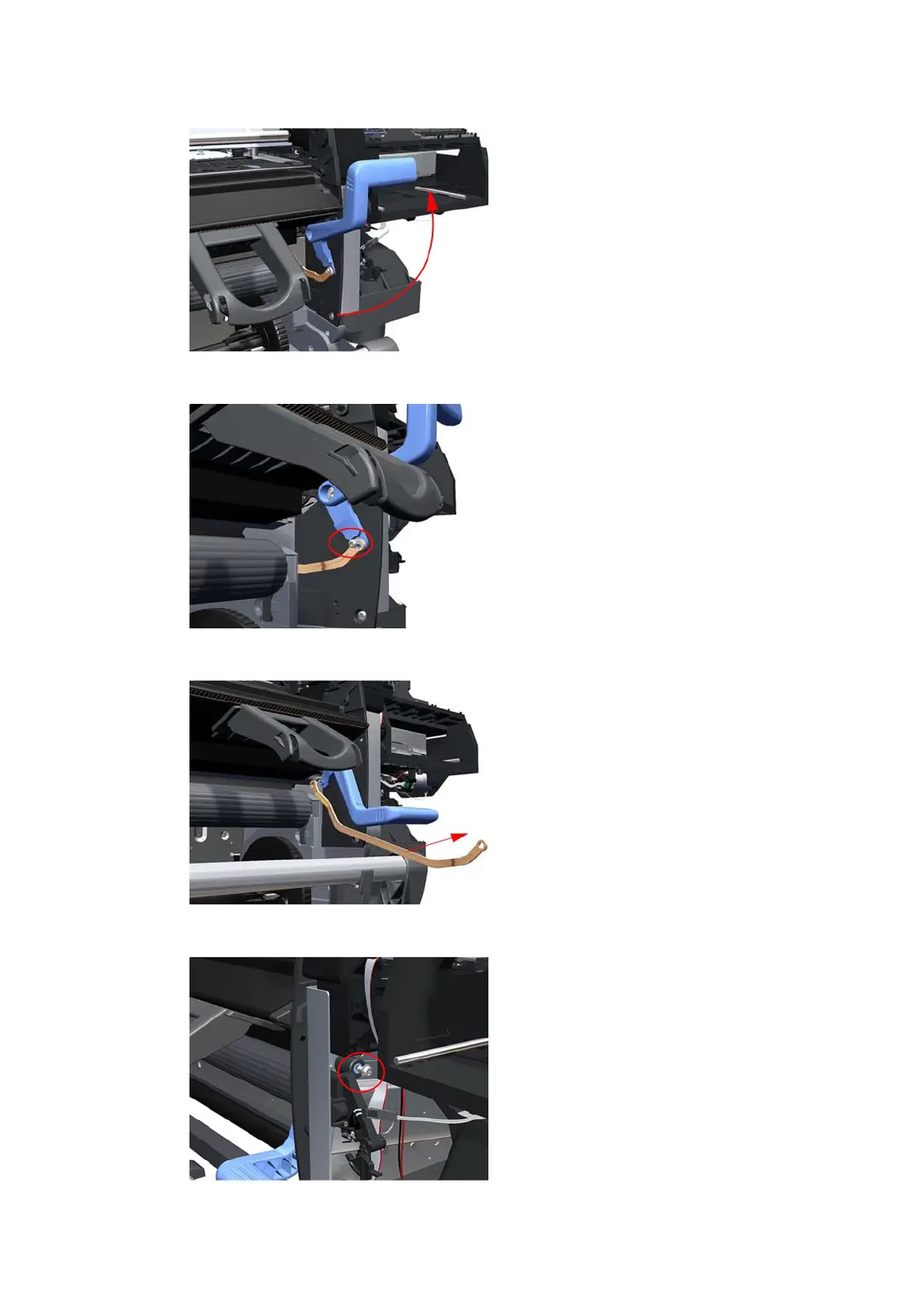

8. Raise the Substrate Lever to gain access to the linkage attachment screw.
9. Remove one T-15 screw (Type F) that secures the Substrate Lever to the Linkage.
10. Remove the Substrate Lever Linkage from the printer.
11. Remove one T-20 screw (Type O) that secures the Substrate Lever to the Right Trim.
ENWW Substrate lever assembly 389
