2-108 Service Manual
5062
241.02—Paper Jam error service check
Step Questions / actions Yes No

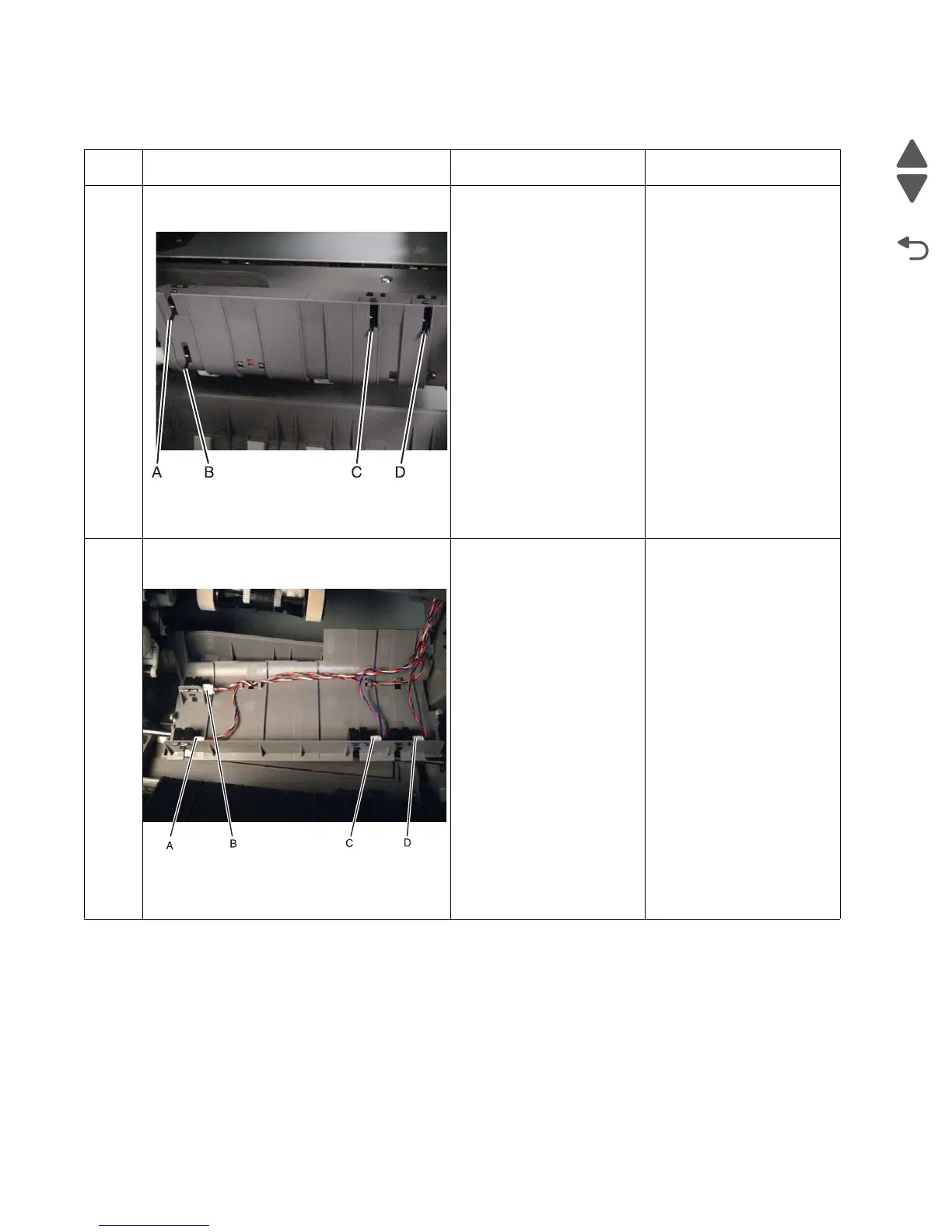

1 Open the left access door. Check the S1
sensor flag (B) for damage.
Is the S1 flag damaged?
Replace the S1 sensor.
See “Sensor (input, S1,
narrow media, near
narrow media) removal”
on page 4-138.
Go to step 2.
2
Remove the staging deflector assembly. See
“Staging deflector assembly removal” on
page 4-140.
Is the S1 sensor (B) in the staging
deflector assembly loose?
Reseat the sensor and add
a sensor retainer. See
“Sensor (input, S1,
narrow media, near
narrow media) removal”
on page 4-138.
Contact your next level of
support.
