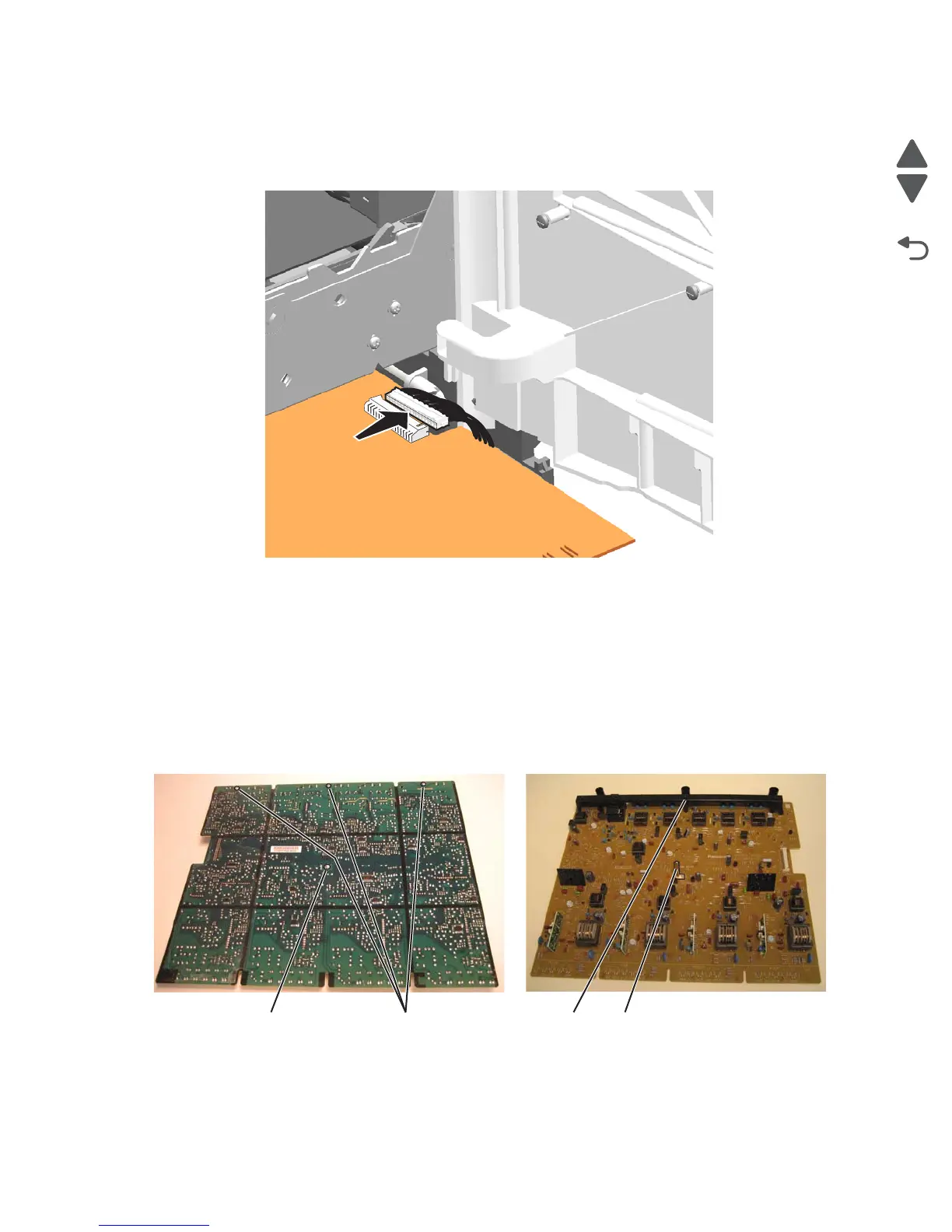

8. Disconnect the cable from the HVPS board.
9. Pull the board all the way out of the printer.
Note: If you are replacing only the HVPS cable, then stop here.
10. Remove the screw (E) and three screws (F) from the bottom of the board to remove the metal post (G) and
the plastic contact bracket (H).
F (88A0323)E (88A0121) H G
