Lexmark C792 series

To Next Page

To Previous Page

4-74 Service Manual

5062

Go Back

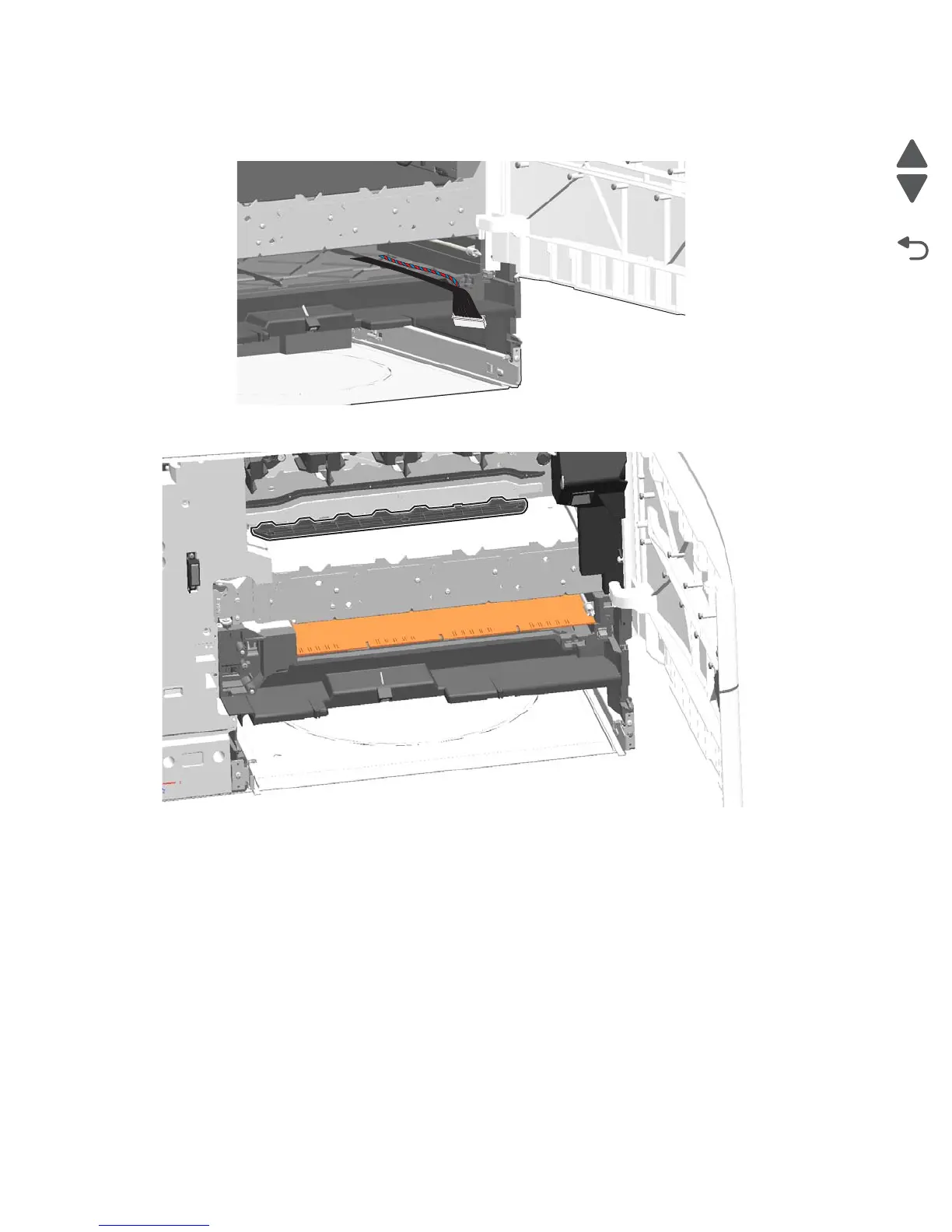

Installation notes:

• Be sure the HVPS cable sits in the groove under the HVPS board.

• Be sure the ITU block assembly sits flat before attaching the three screws to reinstall it.
