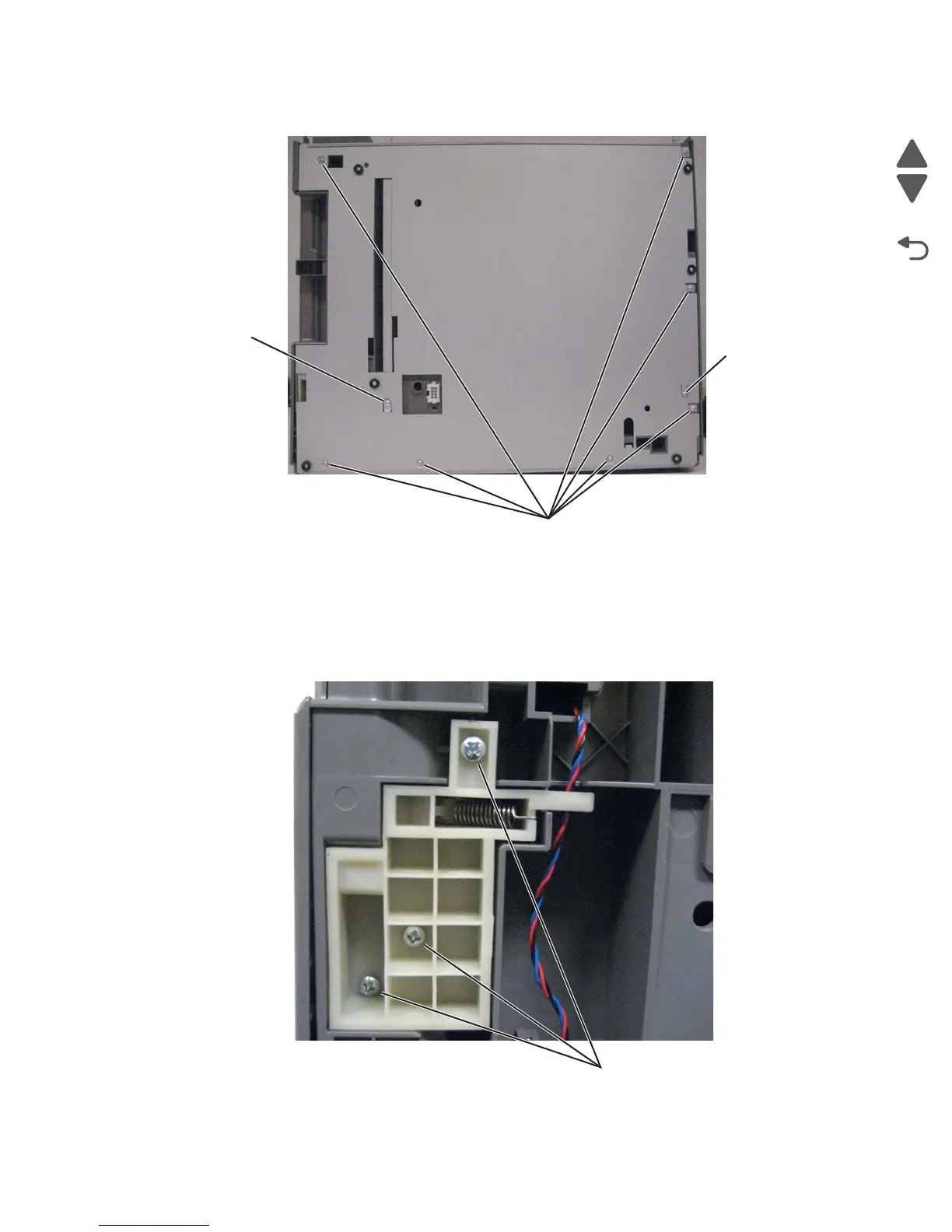

5. Remove seven screws (A) and two screws (B), and remove the bottom plate.
Note: If you are replacing the input option cable, then push it up through the frame, and then stand the
printer back up to remove the cable.
Rear breakaway assembly
a.
Remove three screws (D).
b. Pull to remove the assembly.
A (88A0323)
B (10J1046)
B (10J1046)
D (88A0323)
