Front breakaway assembly

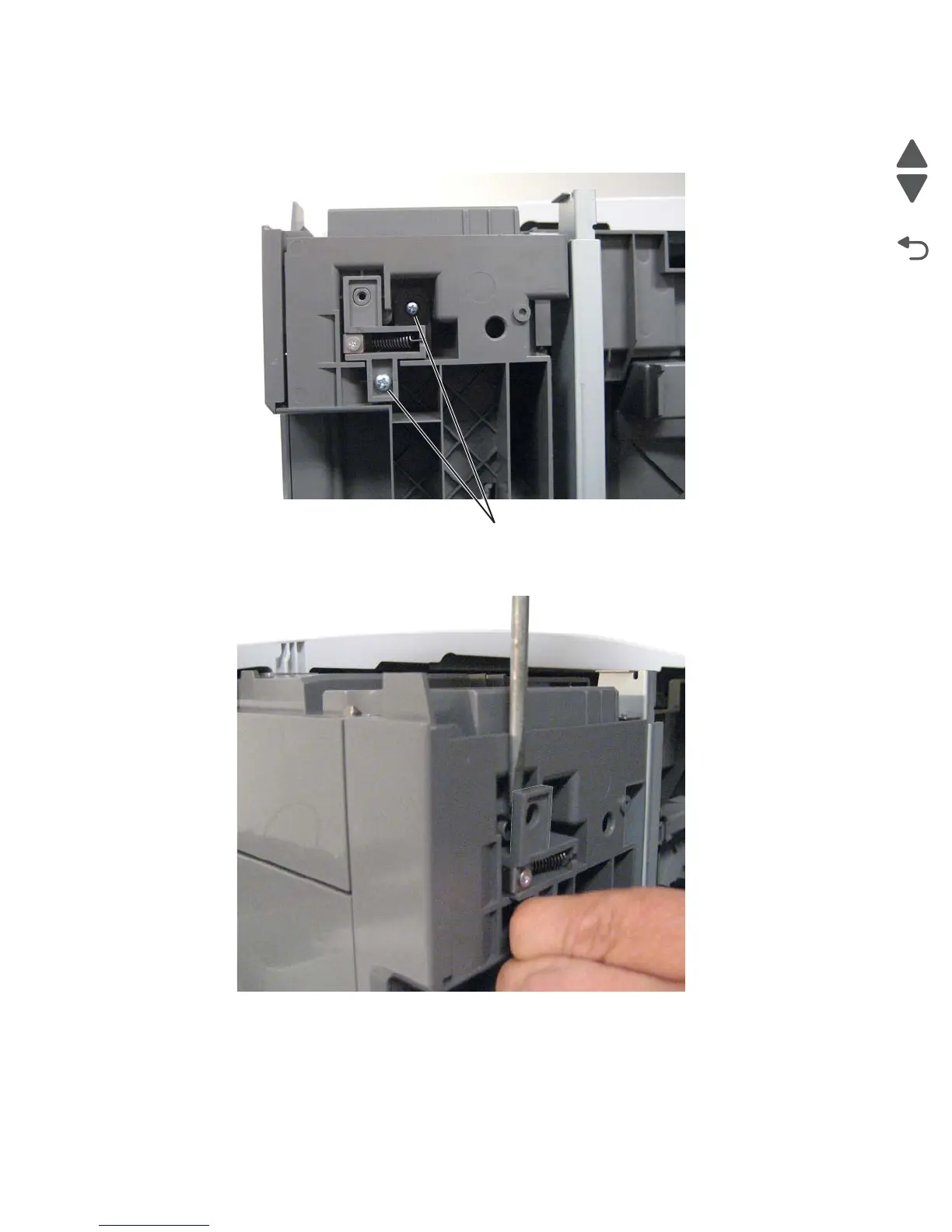

Remove two screws (E).

b. Using a flat-blade screwdriver, pry out the top, and then pull to remove the assembly.

E (88A0323)

Main Page

Default Chapter3
- Table of Contents3
